Axis p1254 Płock

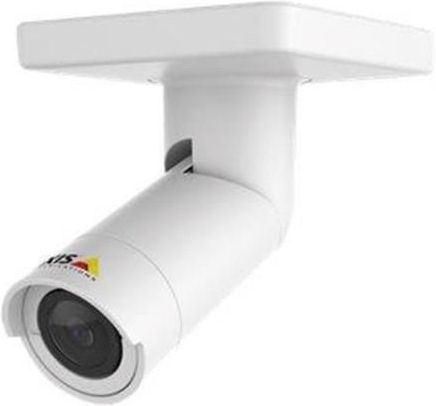

Data sheet : Axis P1254 - IP security camera - Indoor - Wired - Bullet - Ceiling/Wall - White Axis P1254 - IP security camera - Indoor - Wired - Bullet - Ceiling/Wall - White 1280 x 720 - 0.4 lx - Fixed iris - f=2.1mm - F2.2 - WDR - ONVIF - H.264 - MJPEG - PoE - 4W(max.) Group Network Cameras Manufacturer Axis Manufacturer item no. 0924-001 EAN/UPC 7331021052802 Marketing AXIS P1254 Network CameraCost-effective mini bullet camera- Easy and discreet installation- Sensor unit rotates and tilts to the desired viewing direction- HDTV 720p and 102° horizontal field of view- Axis’ Zipstream technology- Built-in microSD card slotEasy and discreet installationAXIS P1254 Network Camera offers a cost-effective mini bullet-style camera for discreet surveillance in stores, kiosks, hotels and offices. The sensor unit of this indoor HDTV 720p camera allows for easy installation on walls or ceilings, and can rotate and tilt to the desired viewing direction.Modular conceptAXIS P1254 is composed of the following: an AXIS F1004 Bullet Sensor Unit, comprising a lens and image sensor, and AXIS P12 Mk II Main Unit, which is the body of the camera. The sensor unit comes with a detachable 8-m (26 ft) cable for connection to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space.Bullet sensor unitWith a base plate smaller than the palm of a hand, the bullet-style sensor unit is both small and sleek. It provides a 102° horizontal field of view and color video in light as low as 0.4 lux.Compact main unitThe main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.Savings with Axis’ Zipstream technologyAXIS P1254 supports Axis’ Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use by an average of 50% or more for many surveillance scenarios. The encoding technology ensures that important details are maintained while unnecessary data is heavily compressed.Video analyticsAXIS P1254 supports AXIS Video Motion Detection 3, Active Tampering Alarm and AXIS Camera Application Platform for installation of additional video analytics. Extended details Allgemein Fixed focal length 2.1 mm Product colour White Mounting type Ceiling/Wall Form factor Bullet Minimum illumination 0.4 lx Viewing angle, horizontal 102 ° Angle of rotation 90 ° Placement supported Indoor Connectivity technology Wired Type IP security camera Sensor type CMOS Optical sensor size 25.4 / 4 mm Extended details Lens system Fixed focal length 2.1 mm Maximum aperture number 2.2 Night vision Night vision N Ports & interfaces Ethernet LAN (RJ-45) ports 1 Security Security algorithms 802.1x RADIUS,HTTPS,SNMP,SRTP,SSH,SSL/TLS Active tampering alarm Y Video motion detection Y IP address filtering Y HTTPS encryption Y Alert notification type E-mail,Snapshot alert message,Text alert message Management features Firmware upgradeable Y System requirements Mac operating systems supported Y Linux operating systems supported Y Windows operating systems supported Y Design Product colour White LED indicators Y Mounting type Ceiling/Wall Form factor Bullet Storage Built-in HDD N Card reader integrated Y Flash memory 256 MB Compatible memory cards MicroSD (TransFlash),MicroSDHC,MicroSDXC Maximum memory card size 64 GB Weight & dimensions Cable length 8 m Depth 60 mm Weight 55 g Length 8.9 cm Height 89 mm Width 60 mm Packaging content Bundled software EN 55022 Class B, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27 Memory card included N Quick installation guide Y Video Maximum resolution 1280 x 720 pixels Supported graphics resolutions 480 x 270,640 x 480 (VGA),800 x 480 (WVGA),800 x 600 (SVGA),854 x 480 (WVGA),1024 x 576 (WSVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 720 (HD 720) Text caption overlay Y Frame rate 30 fps Privacy masking Y Video formats supported H.264 Supported video modes 720p Image quality adjustment Brightness, Color depth, Contrast, Sharpness Video compression formats H.264,M-JPEG,MPEG4 Technical details Iris Y Network Networking standards IEEE 802.3af,IEEE 802.3at Wi-Fi N Supported network protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, ONVIF Ethernet LAN Y Quality of Service (QoS) support Y Ethernet interface type Fast Ethernet Cabling technology 10/100Base-T(X) Camera Viewing angle, vertical 56 ° Minimum illumination 0.4 lx Pan range -180 - 180 ° Camera shutter speed 1/24500 - 1/6 s Camera shutter type Electronic Tilt angle range 0 - 90 ° Viewing angle, horizontal 102 ° Angle of rotation 90 ° Operational conditions Storage temperature (T-T) -40 - 65 °C Operating temperature (T-T) -20 - 50 °C Operating relative humidity (H-H) 10 - 85 % Performance Placement supported Indoor Connectivity technology Wired Type IP security camera Wide Dynamic Range (WDR) Y RoHS compliance Y Image sensor Sensor type CMOS Optical sensor size 25.4 / 4 mm Power Power over Ethernet (PoE) Y Power consumption (max) 4 W Power consumption (typical) 2.5 W Power source type PoE
