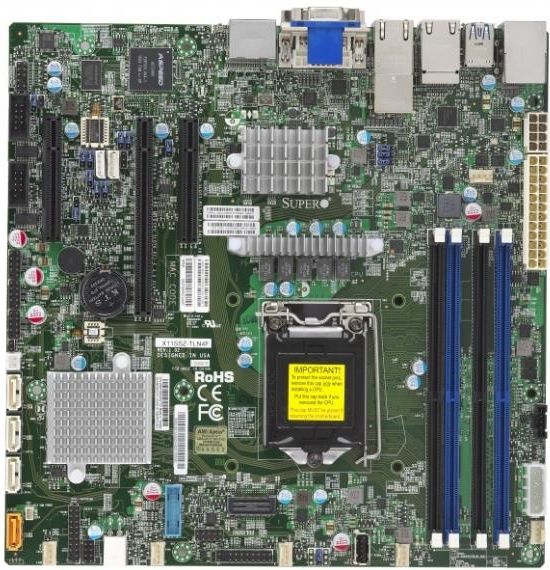

Supermicro MBD-X11SSZ-TLN4F-O Żory

Product SKUs MBD-X11SSZ-TLN4F X11SSZ-TLN4F (Bulk Pack) Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU Intel® 6th Generation Core™ i3 series Intel® 6th Generation Core™ i5 series Intel® 6th Generation Core™ i7 series Intel® Celeron® Intel® Pentium® Intel® Xeon® processor E3-1200 v5 series Socket H4 (LGA 1151) supported; CPU TDP support Up to 91W System Memory Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes 4GB, 8GB, 16GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C236 SATA Intel® C236 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Network Controllers Dual LAN with Intel® X550 10GBase-T Ethernet Controller Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics Intel® HD Graphics , Aspeed AST2400 BMC Input / Output USB 9 USB 2.0 ports (2 rear, 6 via header, 1 Type A) 4 USB 3.0 ports (2 rear, 2 via header) Video Output 2 DP (DisplayPort), 1 DVI - I, 1 VGA, 1 Intel® HD Graphics , 1 Aspeed AST2400 BMC 3 Independent Displays, VGA Port is for BMC Serial Port / Header 2 COM Ports (2 headers) TPM 1 TPM 2.0 Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 (in x16 slot) 2 PCI-E 3.0 x4 (in x8 slot) System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.3.1 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 RTC (Real Time Clock) Wakeup Management Software AMT, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, vPro, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 1.2V (VDIMM), 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT FAN Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Fan speed control Overheat LED indication Pulse Width Modulated (PWM) fan connectors PWM fan speed control System level control Thermal control tachometer fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED UID/Remote UID Other Features 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, System level control, UID, WOL
