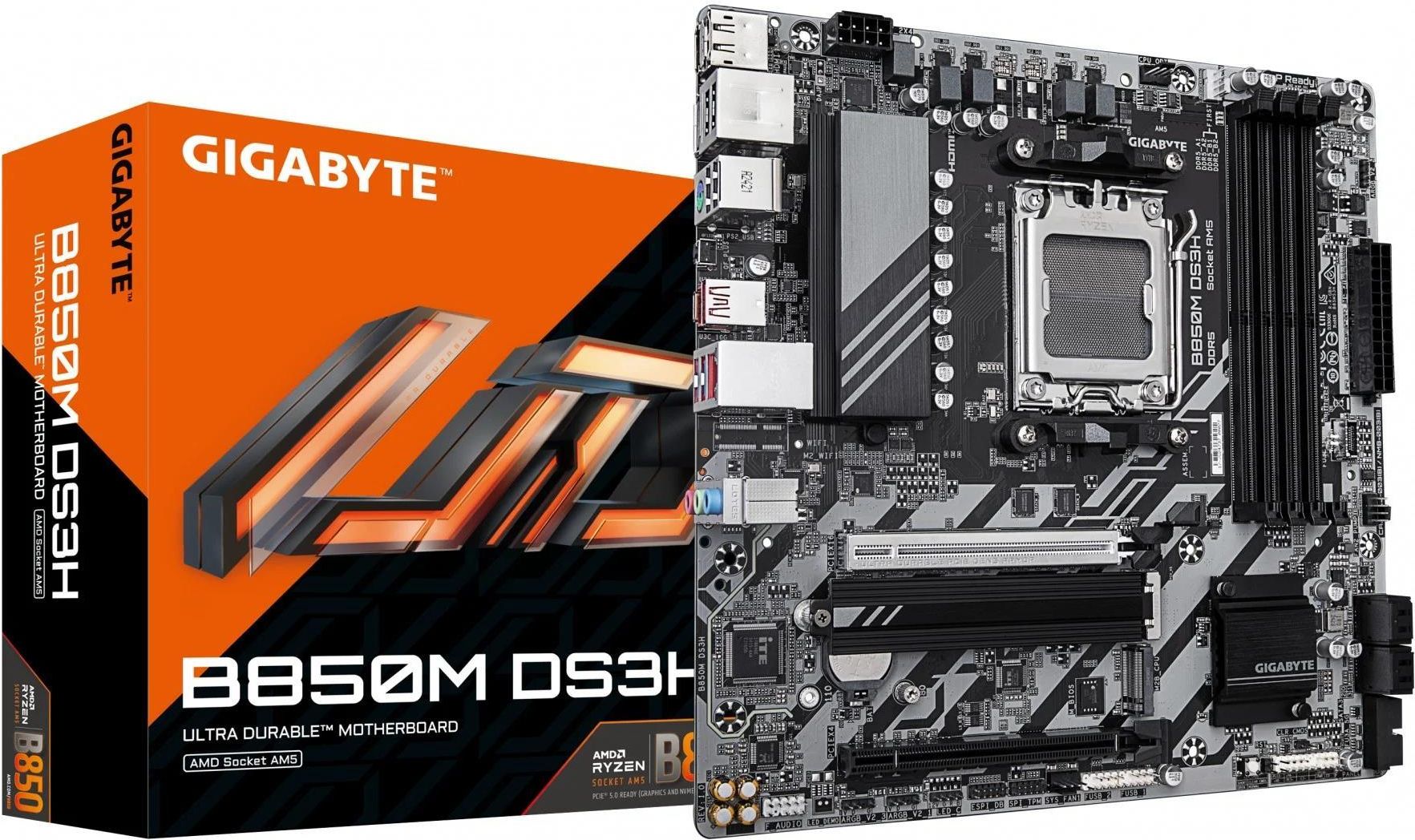

Gigabyte B850M DS3H AM5 (B850MDS3H) Zabrze

Gniazdo procesora: Socket AM5 Obsługiwane typy procesorów: AMD Ryzen Uwagi do procesora: Support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors Format płyty: Micro-ATX BIOS: 256 Mbit flash AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Chipset płyty głównej: AMD B850 Ilość złącz pamięci DDR5: 4 Maksymalna wielkość pamięci: 256 GB Tryb pracy pamięci RAM: Dual Channel Standard pamięci: DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6666 (OC), DDR5-6600 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5600 (OC), DDR5-5200, DDR5-4800, DDR5-4400 Uwagi do pamięci RAM: Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and, Extreme Memory Profile (XMP) memory modules Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 2x M.2 - RAID 0,1,5,10 Uwagi do kontrolera SATA: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3,, M key, type 25110/22110/2580/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices, RAID 5 is only available on AMD Ryzen™ 9000 Series Processors Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora) Gniazda karty graficznej: HDMI, 2x DisplayPort Uwagi do karty graficznej: Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Support for HDMI 2.1 version and HDCP 2.3, and HDR, Support for native HDMI 2.1 TMDS compatible ports, - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz, Support for DisplayPort 1.4 version, Graphics specifications may vary depending on CPU support, Support for up to quad-display at the same time Zintegrowana karta dźwiękowa: Realtek ® 7.1 Surround Sound High Definition Audio CODEC Gniazda karty dźwiękowej: 3x Audio Jack Uwagi do karty dźwiękowej: You can change the functionality of an audio jack using the audio software, To configure 7.1-channel audio, access the audio software for audio setting Złącza PCI Express x16: 2 Uwagi do złącz PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, The PCIEX16 slot can only support a graphics card or an NVMe SSD, If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) Maksymalna ilość portów USB 2.0: 8 Maksymalna ilość portów USB 3.x: 7 Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 1x USB 3.1 + 1x USB 3.1 Type-C Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) Port Wi-Fi: Nie Port Bluetooth: Nie Port PS/2: Port combo klawiatury/myszy PS/2 Port szeregowy (COM): Brak Port równoległy (LPT): Brak Inne porty i gniazda: CPU fan header, CPU fan/water cooling pump header, System fan header, System fan/water cooling pump header, 3x Addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Reset button, Reset jumper, Clear CMOS jumper, Q-Flash Plus button Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) Wymiary [S x W] (mm): 244 x 244 Opakowanie: BOX Zawiera baterię / akumulator: Tak Informacje dodatkowe: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup, Support for Windows 10 and Windows 11 64-bit, Bundled Software:, - Norton® Internet Security (OEM version), - LAN bandwidth management software
