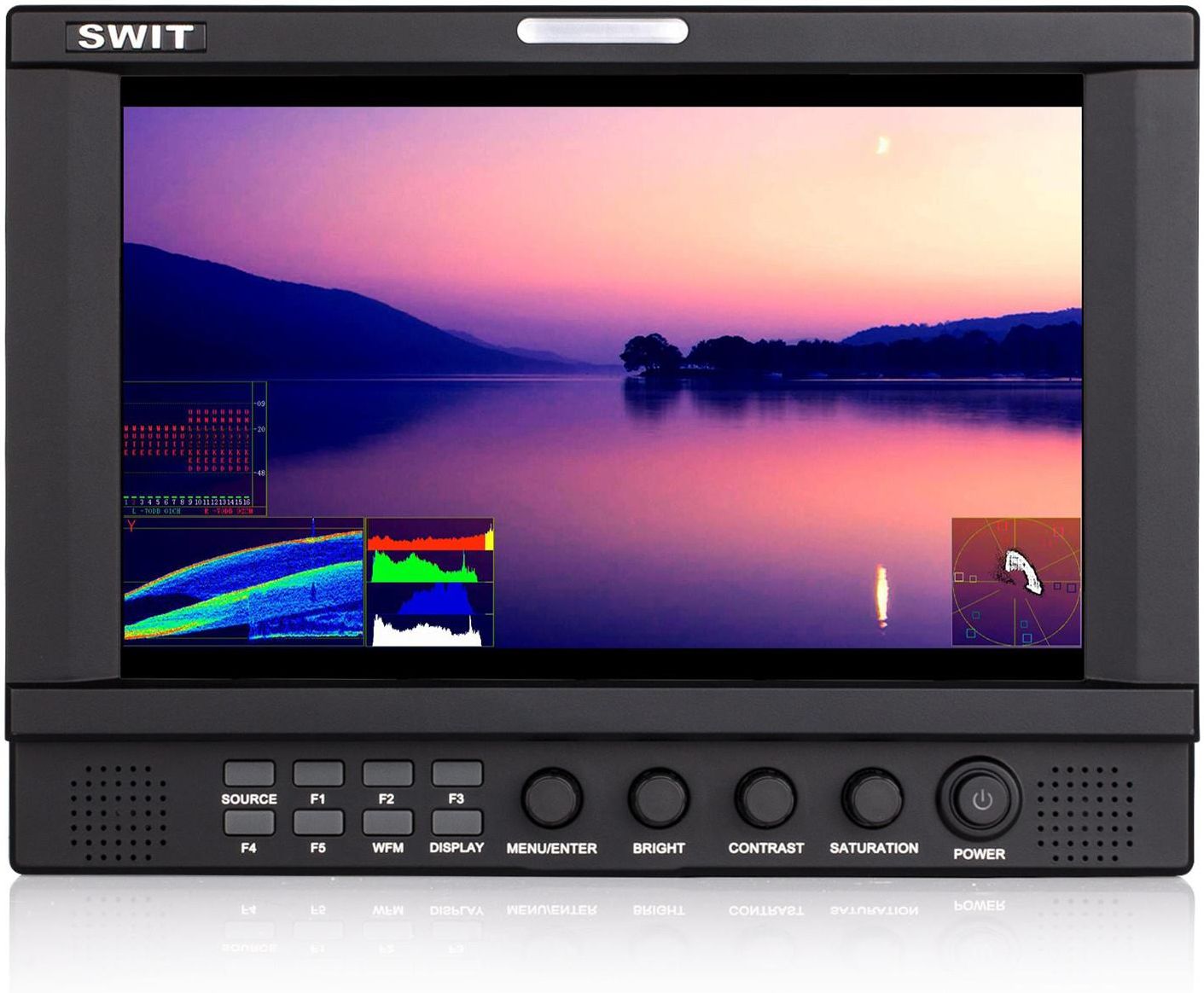

SWIT S-1093F Wronki

◆ 9” IPS LCD, 1920×1200, H/V 170°viewing ◆ Build-in LCD protective glass ◆ 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring ◆ 16-ch Embedded audio meters with alert ◆ Select any 2 audio channels to output ◆ Waveform Y/Cb/Cr/R/G/B and single line ◆ Vector scope, histogram R/G/B/Y ◆ AFD, H/V delay, R/G/B/Mono, False color ◆ TSL UMD and text TALLY display ◆ Zebra stripes, Peaking focus assist ◆ SDI timecode display ◆ Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1 ◆ Front / Rear TALLY light and GPI control ◆ V-mount, Gold mount or snap-on DV mount ◆ USB firmware upgrade Zestaw zawiera: x1 SWIT S-1093F x1 Zaczep pod dowolny akumulator, wybierany przy zamówieniu. Można go potem dowolnie zmieniać. x1 Mocowanie typu "cold shoe" plus małe ramię typu "magic" x1 Osłona przeciwsłoneczna x1 zasilacz sieciowy DC 4-pin XLR (A-PA03) IPS panel with LED backlight The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170° LCD Protective Glass The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken. Input/Output Interfaces: SDI / HDMI / CVBS / Analog Audio S-1093F monitor supports: 2K/3G/HD/SD-SDI input × 2 2K/3G/HD/SD-SDI loop output × 2 HDMI input × 1 HDMI loop output × 1 CVBS input × 1 CVBS loop output × 1 3.5mm analog audio input × 1 3.5mm analog audio output × 1 Video Analysis Assistant Pattern (Waveform / Vector scope / Histogram) S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence. Embedded audio monitoring (Up to 16-ch meters with alert and select output) S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable. UMD and Text-Tally Display (TSL 3.1 / 4.0 Protocol) S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor. USB Firmware Upgrade The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection. Multiple Power Sources AC adaptor / V-mount / Gold mount / Snap-on DV mount The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate. Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There’re following DV plates for selection: Model adaptera Kompatybilne akumulatory F SONY NP-F970/770, U SONY BP-U60/U30, SWIT S-8U63 D Panasonic D54/D28,VW-VBD58;SWIT S-8D62, S-8D58 B Panasonic VW-VBG6, SWIT S-8BG6 V JVC BN-VF823, SWIT S-8823 I SSL-JVC50, SWIT S-8i50 C Canon BP-945/970G, SWIT S-8845, S-8945 E Canon LP-E6, SWIT S-8PE6 3-color TALLY Light (RJ45(RS485) input signal) There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights. Specyfikacja SWIT S-1093F: LCD Performance Size 9 inches Display area 191.52×119.70mm Resolution 1920×1200 Aspect ratio 16:9 (4:3 adjustable) Brightness 450cd/m2 Contrast 800:1 Color 16.77 million colors Viewing angle Horizontal: 170°Vertical: 170° Input BNC ×2 2K/3G/HD/SD-SDI input ×2 BNC ×1 Composite input HDMI ×1 HDMI input 3.5mm ×1 Analog audio input Output BNC ×2 2K/3G/HD/SD-SDI loop output ×2 BNC ×1 Composite loop output HDMI ×1 HDMI loop output 3.5mm ×1 SDI, HDMI, Analog audio output Video Format CVBS NTSC∕PAL SDI SMPTE ST 2048-1: 2011 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) SMPTE-425M 1080p (60 / 59.94 / 50) SMPTE-274M 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98) SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98) SMPTE-296M 720p (60 / 59.94 / 50) SMPTE-125M 480i (59.94) ITU-R BT.656 576i (50) HDMI 480i/ 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) General Working voltage DC / battery 6.5V-24V Power consumption ≤18W Working temperature 0°C～+40°C Working humidity 10%～90% Storage temperature -15°C～+60°C Storage humidity 10%～90% Dimensions 241×178×52mm Net weight (main body) 960g
