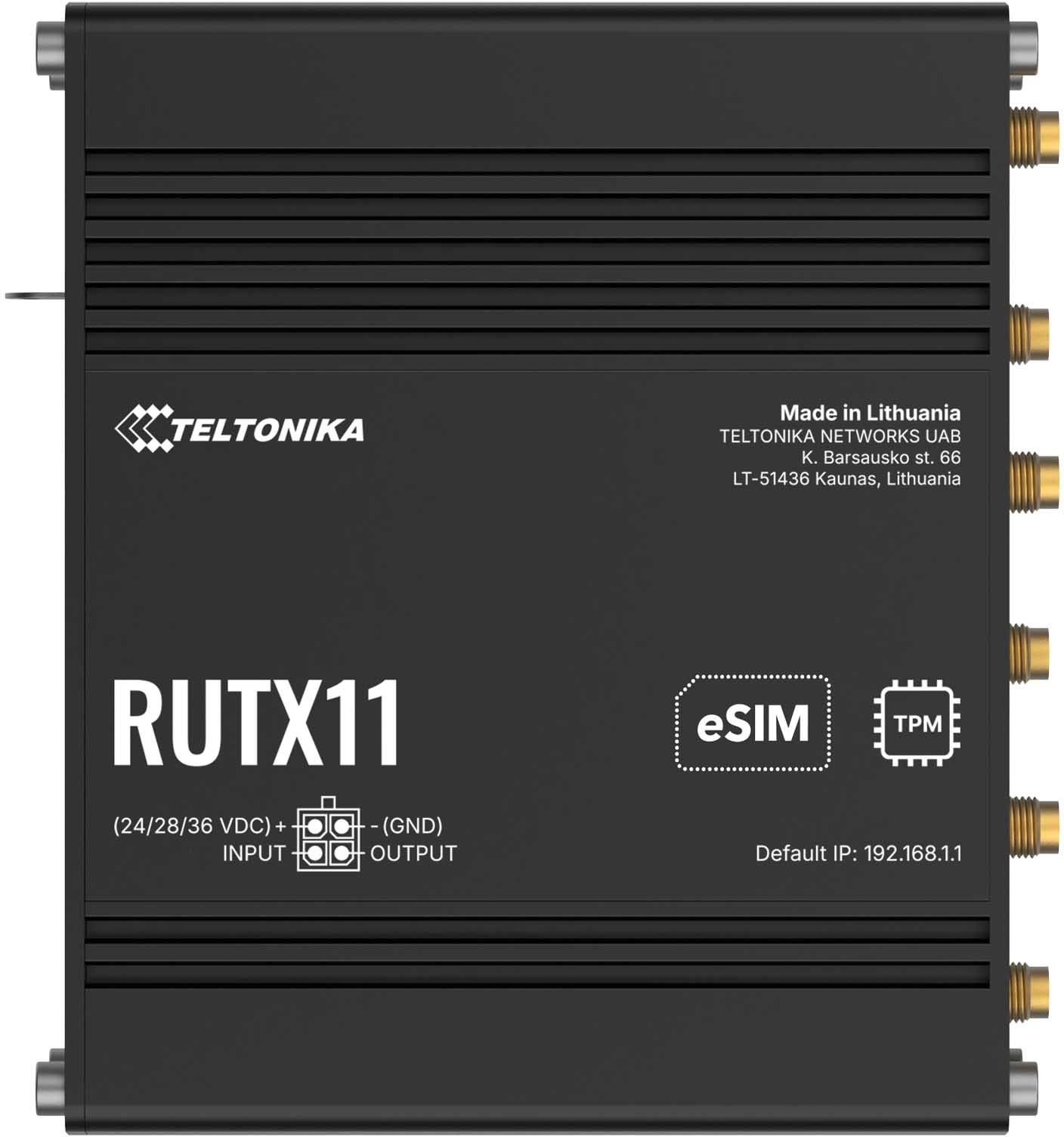

Teltonika RUTX11 (RUTX11240000) Wołczyn

Teltonika RUTX11 (RUTX11240000) to najwydajniejsze z największą ilością funkcji oraz interfejsów urządzenie marki Teltonika. RUTX11 to dwupasmowy, bezprzewodowy router 4G LTE, dual SIM z technologią Wave-2 802.11ac. Wyposażony jest w 4 gigabitowe porty Ethernet, moduł Bluetooth LE, dwuzakresowe AC WiFi, port USB, anteny Bluetooth oraz GNSS (GPS), a także dwa sloty na kartę SIM. RUTX11 posiada czterordzeniowy procesor ARM Cortex A7 o taktowaniu 717MHz i 256 MB pamięci RAM DDR3. Router zawiera oprogramowanie RutOS i funkcje bezpieczeństwa, OpenVPN, IPsec, Firewall, Auto Failover, kontrola SMS oraz wsparcie RMS. To urządzenie jest idealne do zaawansowanych aplikacji przemysłowych i korporacyjnych. Urządzenie zamknięte jest w aluminiowej obudowie. Dzięki funkcji SMS management możliwe jest m.in. restartowanie urządzenia, łączenie i sprawdzanie statusu połączenia. Natomiast funkcja failover nie tylko zapewnia bezawaryjność połączenia w przypadku, gdy jedna z kart SIM zostanie rozłączona, ale także umożliwia obniżenie kosztów poprzez ustawienie opcji failover raoming, która przełącza połączenie na drugą kartę SIM w sytuacji gdy pierwsza z kart rejestruje się w sieci roamingowej i odwrotnie. Przełączanie pomiędzy SIM1 i SIM2 można również uzależniać od wielkości pobieranych cyklicznie danych (przez dzień, tydzień lub miesiąc), a także od poziomu zasięgu. Konfigurację routera, przywracanie i zapisywanie jego ustawień odbywa się poprzez interfejs WWW, wykorzystując do tego przeglądarkę internetową. Routerem można także zarządzać za pomocą SMS. Opcja ta jest niezwykle przydatna w sytuacji, gdy użytkownik nie ma możliwości zainicjowania połączenia VPN czy zrestartowania routera. RUTX11 pozwala także na odbieranie i wysyłanie do jednego lub wielu użytkowników GSM wiadomości tekstowych SMS. Teltonika RUTX11 (RUTX11240000) obsługuje pasma: 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32 4G (LTE-TDD): B38, B40, B41 3G: B1, B3, B5, B8 Zawartość zestawu: router RUTX11 zasilacz 18 W - Teltonika PR3PXEU3 4-pinowy zasilacz 12V 1.5A 18W 2x anteny LTE (obrotowe, męskie SMA) - Teltonika PR1US440 antena LTE 4dBi SMA 2x anteny WiFi (obrotowe, RP-SMA męskie) - Teltonika PR14RD35 antena Wi-Fi dual-band RP-SMA 1x antena GNSS (samoprzylepna, SMA męskie, kabel 3 m) - Teltonika PR1KSG30 antena GNSS GPS 2dBi SMA, 3m (003R-00250) 1x antena Bluetooth (magnetyczna, RP-SMA męskie, kabel 1.5 m) - Teltonika PR1KRT25 antena Bluetooth, magnetyczna, 2.5dBi, RP-SMA, 1.5m kabel Ethernet (1.5 m) adapter na kartę SIM - Teltonika SIM adapter kit (PR5MEC19) QSG (skrócona instrukcja obsługi) opakowanie Najważniejsze cechy: Obsługa LTE kat. 6 do 300 Mb/s Wave 2 802.11ac Dual Band WiFi o prędkości do 867 Mb/s Dual SIM - znacznie obniża koszty roamingu 4x porty Gigabit Ethernet z funkcjonalnością VLAN Port USB Anteny: Bluetooth, GNSS (GPS), 2x Mobile, 2x WiFi System zdalnego zarządzania Teltonika - RMS Wersja z obsługą eSIM Mobile Mobile module: 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps 3GPP Release: Release 12 eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans SIM switch: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Block/Allow list: Operator block/allow list (by country or separate operators) Multiple PDN: Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used band status display SIM idle protection service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN Wireless Wireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) SSID/ESSID: SSID stealth mode and access control based on MAC address Wi-Fi users: Up to 150 simultaneous connections Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) Wireless MAC filter: Allowlist, blocklist Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device Bluetooth Bluetooth 5.0: Bluetooth low energy (LE) for short range communication Ethernet WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Network Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules, TTL target customisation Firewall status page: View all your Firewall statistics, rules, and rule counters Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology: Visual representation of your network, showing which devices are connected to which other devices Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported >77 service providers, others can be configured manually DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing: Balance Internet traffic over multiple WAN connections SSHFS: Possibility to mount remote file system via SSH protocol VRF support: Initial virtual routing and forwarding (VRF) support Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history Security 802.1x: Port-based network access control client Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet TPM*: Identification and authentication module, TPM 2.0 standard ‎*Feature availability varies by order code Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates VPN OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE: GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol OPC UA Supported modes: Client, Server Supported connection types: TCP MODBUS Supported modes: Server, Client Supported connection types: TCP, USB Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII Data to Server Protocol: HTTP(S), MQTT, Azure MQTT Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature MQTT Gateway Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker DNP3 Supported modes: Station, Outstation Supported connection: TCP, USB DLMS/COSEM DLMS Support: DLMS - standard protocol for utility meter data exchange Supported modes: Client Supported connection types: TCP, USB API Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com Monitoring & Management WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS RMS: Teltonika Remote Management System (RMS) IoT Platforms ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality System Characteristics CPU: Quad-core ARM Cortex A7, 717 MHz RAM: 256 MB, DDR3 FLASH storage: 256 MB, SPI Flash Firmware/Configuration WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration FIRMWARE CUSTOMISATION Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++, and Python, Java in Package manager Development tools: SDK package with build environment provided GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs Package Manager: The Package Manager is a service used to install additional software on the device Location Tracking GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA: NMEA 0183 NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol) Server software: Supported server software TAVL, RMS Geofencing: Configurable multiple geofence zones USB Data rate: USB 2.0 Applications: Samba share, USB-to-serial External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 Input/Output Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events: Email, RMS, SMS I/O juggler: Allows to set certain I/O conditions to initiate event Power Connector: 4-pin industrial DC power socket Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection, 24 - 36 VDC for railway version of the code RUTX11 020G00 PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC Power consumption: 16 W Max Physical Interfaces Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs: 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders Power: 1 x 4-pin power connector Antennas: 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS USB: 1 x USB A port for external devices Reset: Reboot/User default reset/Factory reset button Other: 1 x Grounding screw Physical Specification Casing material: Aluminium housing Dimensions (W x H x D): 115 x 44.2 x 95.1 mm Weight: 456 g Mounting options: DIN rail, wall mount, flat surface (all require additional kit) Operating Environment Operating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 Regulatory & Type Approvals Regulatory: CE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB, IC (ISED), RCM Operator: AT&T, Verizon, T-Mobile, Deutsche Telekom AG Vehicle: ECE R10 (E-mark) EMC Emissions & Immunity Standards CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 + A2:2021 EN 301 489-1 V2.2.3 EN 301 489-3 V2.3.2 EN 301 489-17 V3.3.1 EN 301 489-19 V2.2.1 EN 301 489-51 V1.2.1 FCC/ISED(IC): 47 CFR Part 15 Subpart B ICES-003: Issue 7 (October 2020) RCM: AS/NZS CISPR 32:2015 + A1 ESD: EN 61000-4-2:2009 Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 Surge immunity (AC Power Line): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2004, EN 61000-4-11:2020 RF Standards CE/UKCA: EN 300 328 V2.2.2 EN 303 413 V1.2.1 EN 301 893 V2.1.1 EN 300 440 V2.2.1 EN 301 908-1 V15.2.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.2.1 RCM: AS/NZS 4268:2017+A1:2021 AS/CA S042.1:2022 AS/CA S042.4:2022 Standards (Wi-Fi 2.4 GHz, 5 GHz) FCC: 47 CFR Part 15 Subpart C - § 15.247, Subpart E - § 15.407 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D04 Operational Modes for DFS Testing New Rules v01 IC (ISED): RSS-247 Issue 3 (August 2023) RSS-Gen Issue 5 (April 2018) Amendment 2 (February 2021) RF Exposure Standards FCC: 47 CFR - § 2.1091 KDB 447498 D04 Interim General RF Exposure Guidance v01 IC (ISED): RSS-102 Issue 6 (December 2023) Safety Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020 CB: IEC 62368-1:2018 RCM: AS/NZS 62368.1:2022
