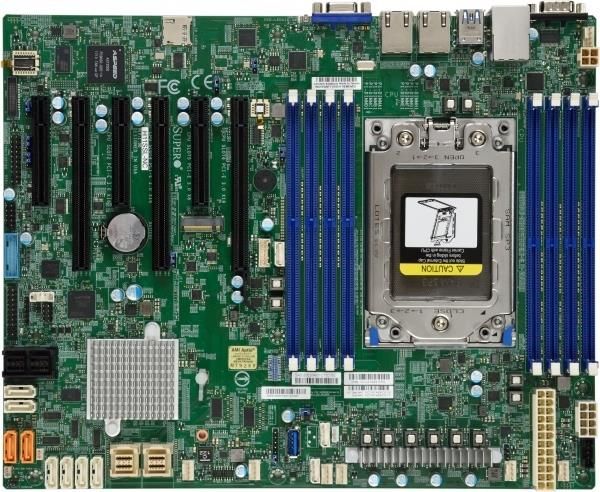

Supermicro H11SSL-NC (MBDH11SSLNCB) Wolbrom

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs MBD-H11SSL-NC H11SSL-NC Physical Stats Form Factor ATX Dimensions 12" x 9.6" (30.5cm x 24.4cm) Processor/Chipset CPU Single AMD EPYC™ 7000-series Processor Socket SP3 Chipset System on Chip System Memory Memory Capacity 8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs 8-channel memory bus Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices SATA SATA3 (6 Gbps) SAS Broadcom 3008 SAS3 (12 Gbps) controller RAID 0, 1, 10; IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC Network Controllers 2 1GbE LAN via Intel® I210 1 Realtek RTL8211E PHY (dedicated IPMI) VGA ASPEED AST2500 BMC Input / Output SAS 8 SAS3 (12 Gbps) ports SATA 8 SATA3 (6 Gbps) ports NVMe 2 PCI-E 3.0 NVMe x4 Internal Ports LAN 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 5 USB 3.0 ports (2 rear, + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear + 2 via header) VGA 1 VGA port Others 1 COM port (rear) 2 SATA DOM power connector 1 TPM 1.2 header Expansion Slots PCI-Express 3 PCI-E 3.0 x8 3 PCI-E 3.0 x16 M.2 Interface: PCI-E 3.0 x4 Form factor: 2260, 2280, 22110 Support SATA devices System BIOS BIOS Type AMI 128Mb SPI Flash EEPROM BIOS Features Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 Management Software Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN Power Configurations ACPI Power Management Power-on mode control for AC power loss recovery PC Health Monitoring CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby CPU switching voltage regulator Supports system management utility VBAT FAN Up to 7-fan status tachometer monitoring Up to 7 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 7x Fan connectors I²C Temperature Sensing Logic LED CPU / System Overheat LED Other Features Chassis Intrusion Detection Chassis Intrusion Header UID Operating Environment / Compliance Environmental Specifications Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
