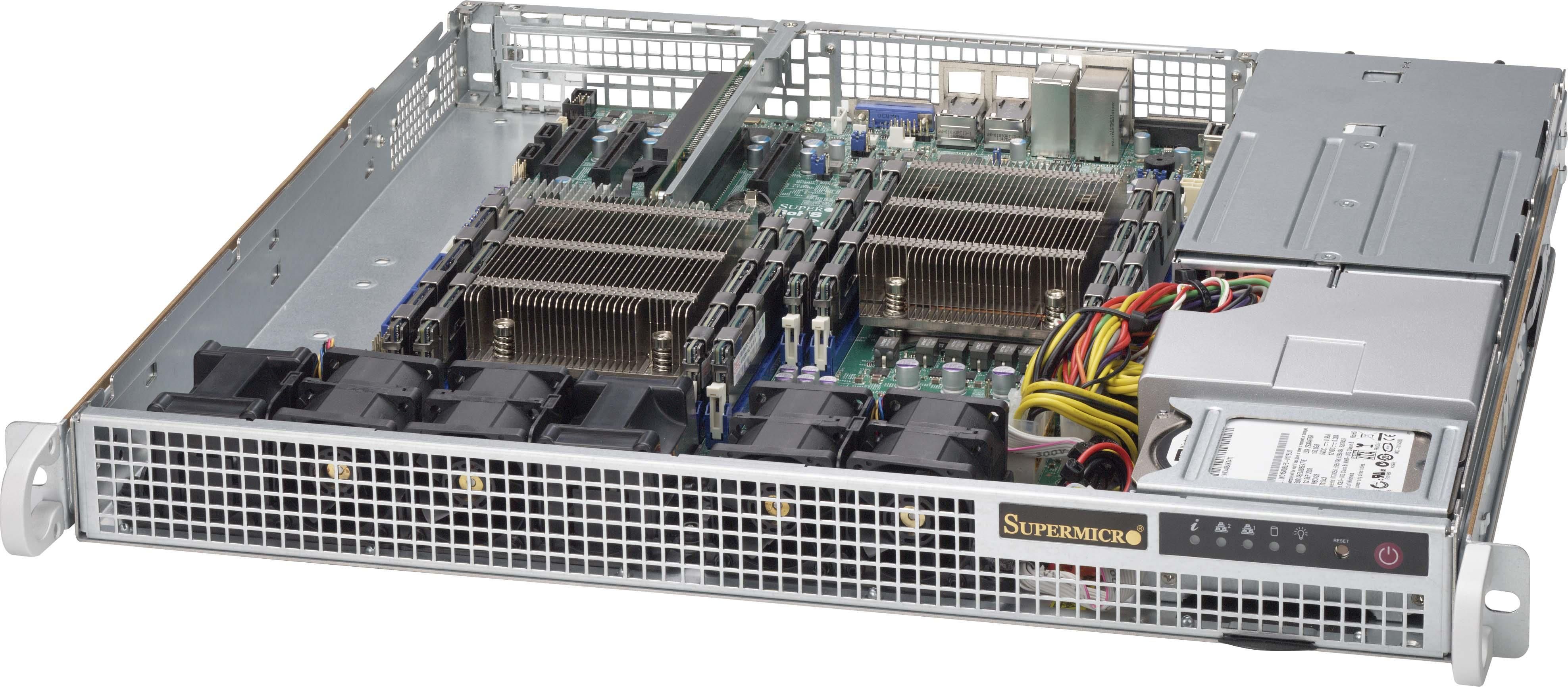

Supermicro Superchassis Sc514-R407C 1U 2Xsff Red Psu (CSE514R407C) Wodzisław Śląski

Product SKUs CSE-514-R407C SuperChassis 514-R407C Form Factor Support STD MB, size up to E. ATX 12" x 13". Processor Support Dual and Single Intel® and AMD processors Dimensions Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 16.9" (429 mm) Gross Weight 18 lbs (8.16 kg) Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm) Available Color No Paint Expansion Slots 1 full height expansion slot(s) Drive Bays 2 x 2.5" fixed with bracket SAS or enterprise SATA HDD only recommended Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Systems Cooling Fans 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm Power Efficiency 94% Total Output Power and Input 400W with Input 100 - 240Vac 400W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 220 x 54.5 x 40 mm Output Type Backplanes (gold finger) +12V Max: 33A (100Vac - 240Vac) +5Vsb Max: 3A / Min: 0A Power Distributor PDB-PT514-2824 O/P: 12V/54A +5V Max: 25A +3.3V Max: 25A -12V Max: 0.6A Certification Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
