Gefen GTB-HD4K2K-848-BLK Warszawa

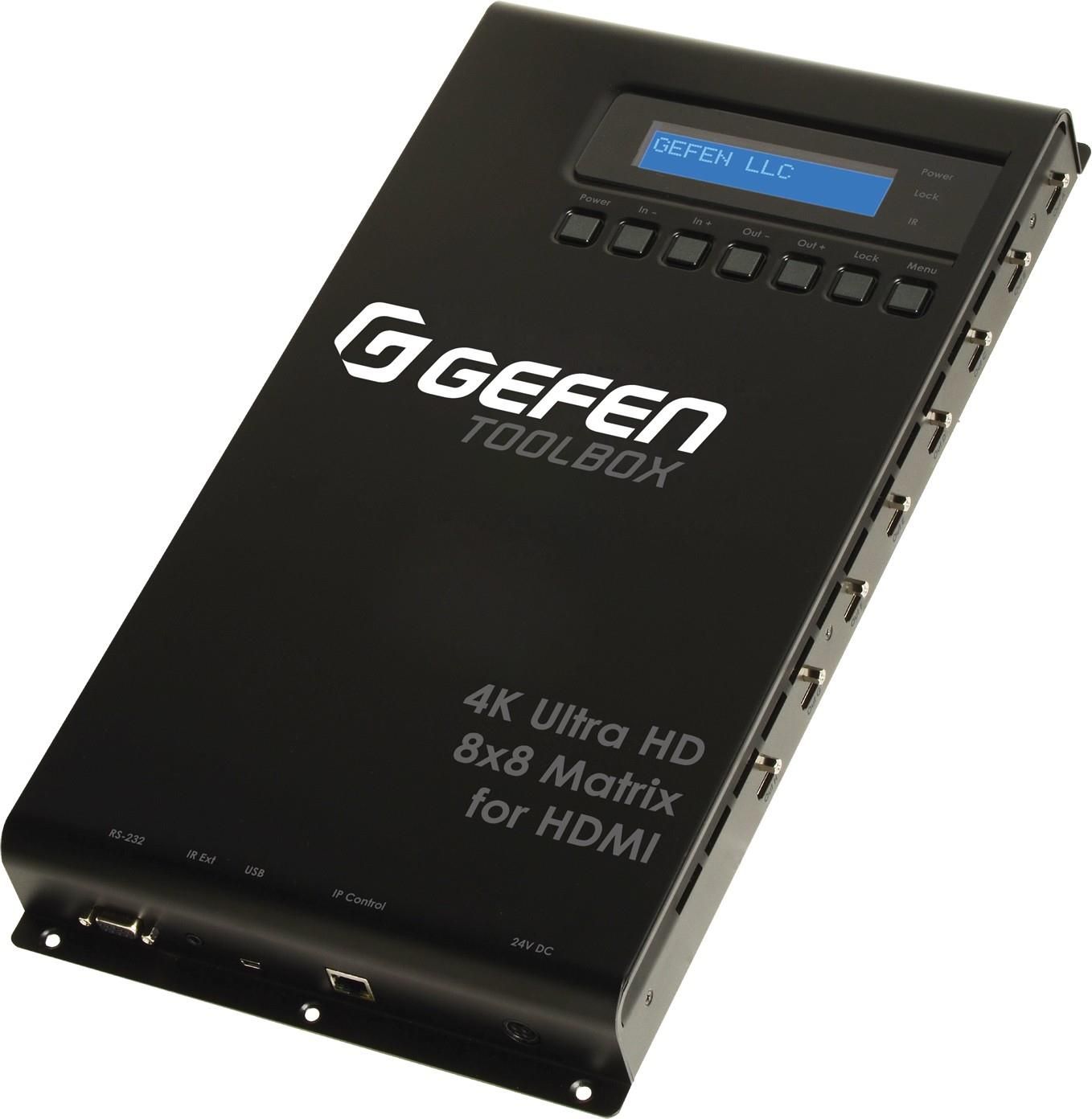

Route 8 4K Ultra HD sources to 8 diplays with HDCP, 3DTV and 7.1 channel LPCM and HBR support The Gefen GTB-HD4K2K-8482-BLK ToolBox 8x8 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. The Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and the Gefen intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings. Video Support Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal. Audio Support multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through. Gefen GTB-HD4K2K-848-BLK Features at a Glance Maximum Pixel Clock: 300 MHz HDMI Input Connectors: (6) Type A 19-pin female, locking HDMI Output Connectors: (2) Type A 19-pin female, locking Digital Audio Outputs: (2) TOSLINK® USB Port: (1) Mini-B RS-232 serial port: (1) DB-9, female Ethernet (IP Control) Port: (1) RJ-45 jack FST Selector: (1) tact-type, recessed push-button Audio Selector: (1) tact-type, recessed push-button EDID Selector: (1) tact-type, recessed push-button Routing Selectors: (2) tact-type push-buttons Power Indicator: (1) LED, blue FST Indicators: (2) LED, green Audio Indicators: (2) LED, green EDID Indicators: (3) LED, green Routing Indicators: (12) LED, green IR Sensor: (1), on front panel R Extender Port (Receiver): (1) 3.5mm mini-stereo jack DC Power Connector: (1) Locking type Power Supply: 5V DC Power Consumption: 20 Watts (max.) Gefen GTB-HD4K2K-848-BLK Specifications Shipping Info Length20 (Inches) Width12 (Inches) Height5 (Inches) Weight6.8 (Lbs) UPC888814217599 In The Box 4K Ultra HD 8x8 Matrix for HDMI (GTB-HD4K2K-848-BLK)(1) IR Remote (RMT-848IR)(1) 24V DC Power Supply (EXT-PS24U375A-6)(1) AC Power Cord (CAB-POWERCORD-XX)(1) Quick-Start Guide (QSG-GTB-HD4K2K-848-BLK)(1)
