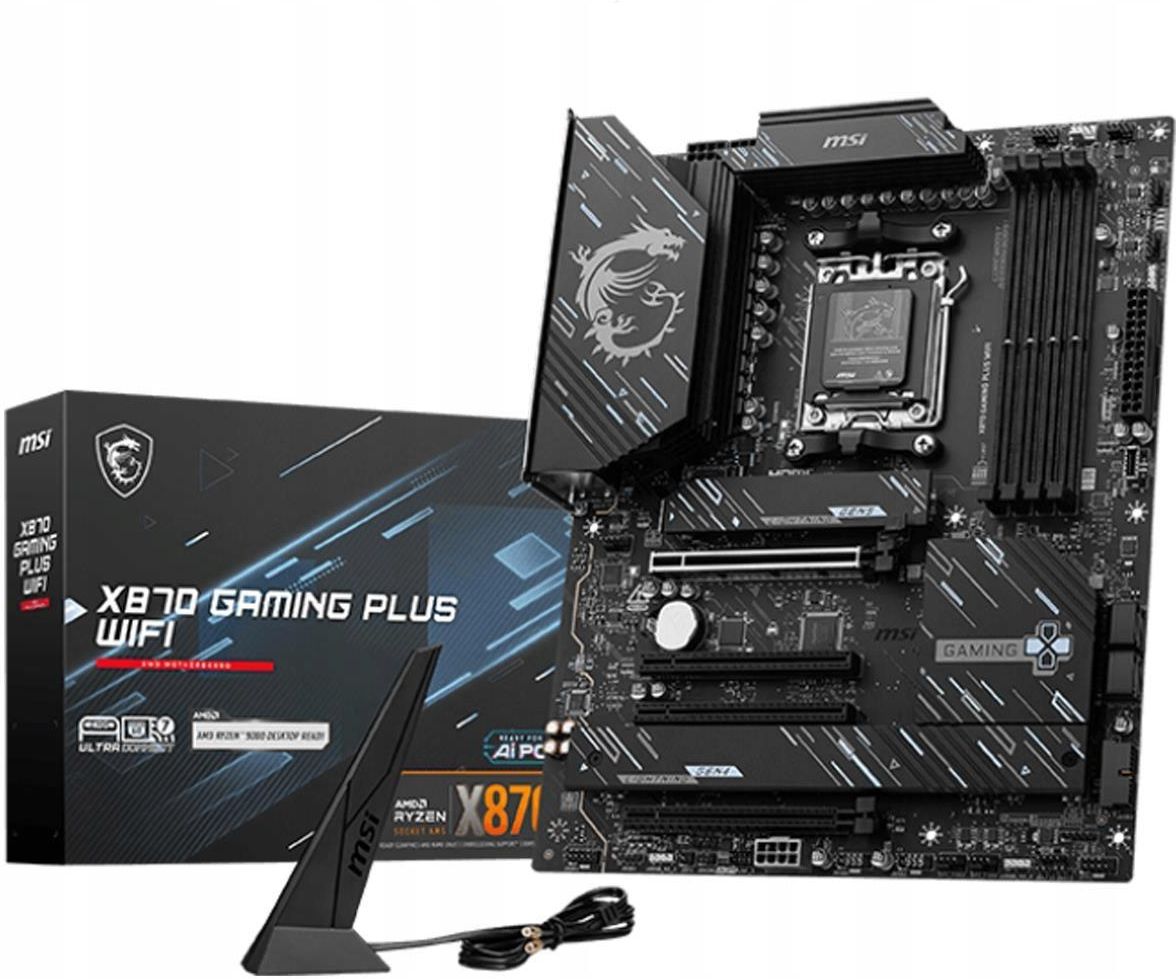

Msi Płyta główna AM5 X870 Gaming Plus Wifi DDR5 4x DIMM (MSIX870GAMINGPLUSWIFI) Szczecin

Gniazdo procesora: Socket AM5 Obsługiwane typy procesorów: AMD Ryzen™ (AM5) Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Format płyty: ATX Chipset płyty głównej: AMD X870 Ilość złącz pamięci DDR5: 4 Maksymalna wielkość pamięci: 256 GB Tryb pracy pamięci RAM: Dual Channel Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC) Uwagi do pamięci RAM: Ryzen 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8200+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max. speed up to 4800+ MHz Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 ,, supports 22110/2280 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,, supports 2280/2260 devices, M2_1 slot:, - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors), Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora) Gniazda karty graficznej: HDMI, USB Type-C Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,, maximum resolution of 4K 60Hz, Graphics specifications may vary depending on the CPU installed. Zintegrowana karta dźwiękowa: Realtek® ALC897 7.1-Channel High Definition Audio Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu Złącza PCI Express x16: 4 Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek® RTL8126VB) Maksymalna ilość portów USB 2.0: 8 Maksymalna ilość portów USB 3.x: 8 Maksymalna ilość portów USB 4.0: 1 Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C + 1x USB4 Type-C Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be Port Bluetooth: Bluetooth V5.4 Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country's regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2 Port PS/2: Brak Port szeregowy (COM): Brak Port równoległy (LPT): Brak Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, EZ Conn-header (JAF_1), 2x Front Panel, Złącze czujnika otwarcia obudowy, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 4x EZ Debug LED, 2x Antenna Ports Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin) Wymiary [S x W] (mm): 243,84 x 304,8 Opakowanie: BOX Wyposażenie dodatkowe: 2x SATA Cables, Cable Sticker, EZ Wi-Fi antenna, Quick Installation Guide, European Union Regulatory Notice, EZ M.2 Clip, EZ M.2 Clip II Remover, 1 to 2 EZ Conn-Cable (V1) Informacje dodatkowe: Support for Windows 11 64-bit
