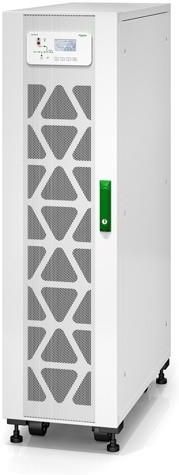

APC Easy 3S - 20000 VA - 20000 W - 304 V - 477 V - 45/65 Hz - 380 V (E3SUPS20KHB1) Sobótka

Data sheet : APC Easy 3S - 20000 VA - 20000 W - 304 V - 477 V - 45/65 Hz - 380 V APC Easy 3S - 20000 VA - 20000 W - 304 V - 477 V - 45/65 Hz - 380 V (Offline) UPS - 10 min - CE - IEC Group Power Supply Manufacturer APC Manufacturer item no. E3SUPS20KHB1 EAN/UPC 8032976126066 Marketing APC Easy 3S. Output power capacity: 20000 VA, Output power: 20000 W, Input operation voltage (min): 304 V. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V, Typical backup time at full load: 15 min. Form factor: Tower, Product colour: White, Display: LED. Width: 380 mm, Depth: 928 mm, Height: 1400 mm. Package width: 563 mm, Package depth: 1014 mm, Package height: 1640 mm Main features General Output power 20000 W Output power capacity 20000 VA Input operation voltage (min) 304 V Battery technology Sealed Lead Acid (VRLA) Battery voltage 240 V Typical backup time at full load 15 min Form factor Tower Product colour White Display LED Width 380 mm Depth 928 mm Height 1400 mm Package width 563 mm Package depth 1014 mm Package height 1640 mm Extended details Features Output power capacity 20000 VA Output power 20000 W Input operation voltage (min) 304 V Input operation voltage (max) 477 V Input frequency 45/65 Hz Output operation voltage (min) 380 V Output operation voltage (max) 415 V Output frequency 50/60 Hz Maximum current 37 A Number of input phases 3 Number of output phases 3 Input power factor 0.99 Output voltage Total Harmonic Distortion (THD) 3 % Input current Total Harmonic Distortion (THD) 3 % Noise level 60 dB Design Form factor Tower Product colour White Display LED International Protection (IP) code IP20 RoHS compliance Y Certification CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH Battery Battery technology Sealed Lead Acid (VRLA) Battery voltage 240 V Number of batteries supported 3 Typical backup time at full load 15 min Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 40 °C Operating relative humidity (H-H) 0 - 95 % Storage relative humidity (H-H) 0 - 95 % Operating altitude 0 - 999.9 m Non-operating altitude 0 - 15000 m Weight & dimensions Width 380 mm Depth 928 mm Height 1400 mm Weight 446 kg Packaging data Quick installation guide Y Package width 563 mm Package depth 1014 mm Package height 1640 mm Package weight 494 kg Other features Output voltage 400 V
