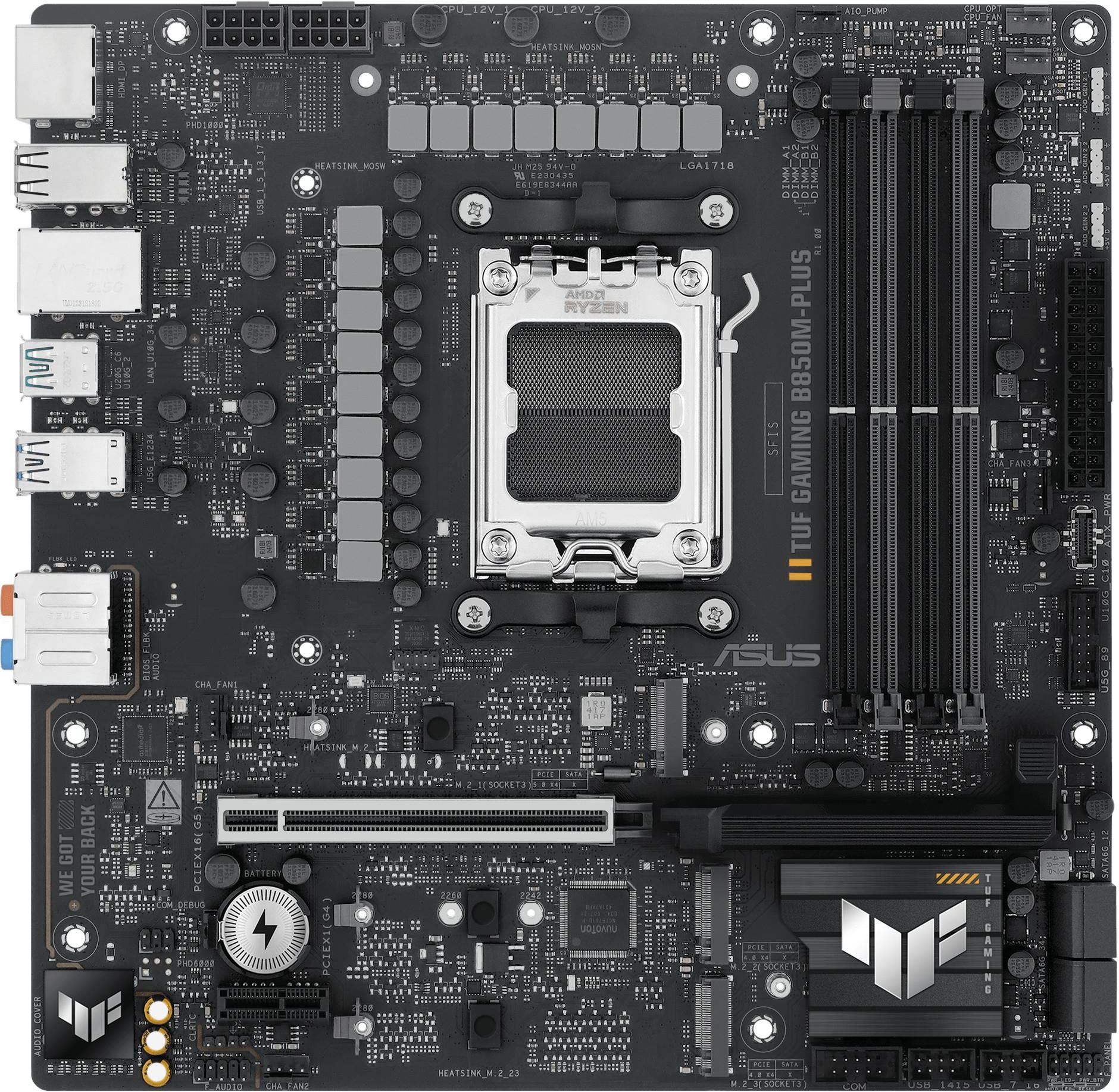

Asus Tuf Gaming B850M-PLUS (90MB1IX0M0EAY0) Sława

Płyta Asus TUF GAMING B850M-PLUS TUF GAMING B850M-PLUS Gniazdo procesora: Socket AM5 Obsługiwane typy procesorów: AMD Ryzen™ (AM5) Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Format płyty: M-ATX BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Chipset płyty głównej: AMD B850 Ilość złącz pamięci DDR5: 4 Maksymalna wielkość pamięci: 192 GB Tryb pracy pamięci RAM: Dual Channel Standard pamięci: DDR5-8000+ (OC) Uwagi do pamięci RAM: ECC and Non-ECC Un-buffered DIMM, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Adjustments will be made based on the specifications of mass-produced, memory products available on the market., Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information please, refer to CPU/Memory Support list under the Support tab of product, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), AMD B850 Chipset:, - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Specifications vary by CPU types, AMD RAIDXpert2 Technology:, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10 Gniazda karty graficznej: HDMI, DisplayPort Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4 Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Gniazda karty dźwiękowej: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, input (Line-in), Supports up to 32-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, 7.1 Surround Sound audio. Złącza PCI Express x16: 2 Złącza PCI Express x1: 1 Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset:, 1 x PCIe 4.0 x1 slot, Specifications vary by CPU types Port LAN: 1x 2,5 Gigabit LAN Realtek Uwagi do karty sieciowej: TUF LANGuard Maksymalna ilość portów USB 2.0: 8 Maksymalna ilość portów USB 3.x: 11 Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) Port Wi-Fi: Nie Port Bluetooth: Nie Port PS/2: Brak Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM Port równoległy (LPT): Brak Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, Clear CMOS button(s), Chassis intrusion header, Front Panel Audio header (AAFP), 10-1 pin System Panel header, BIOS FlashBack button Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) Wymiary [S x W] (mm): 244 x 244 Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, 1 x Quick start guide, 1 x TUF GAMING sticker Zawiera baterię / akumulator: Tak Informacje dodatkowe: Operating System: Windows 11, Windows 10 64-bit, Manageability: WOL by PME, PXE Parametry Wyposażenie dodatkowe: 1 x M.2 rubber package, 1x Quick start guide, 1x TUF GAMING sticker, 2 x Screw packages for M.2 SSD, 2x SATA 6Gb/s cables Port Bluetooth: Nie Format płyty: M-ATX Wymiary [S x W] (mm): 244 x 244 Maksymalna wielkość pamięci: 192 GB Port LAN: 1x 2,5 Gigabit LAN Realtek® Port Wi-Fi: Nie Chipset płyty głównej: AMD B850 Standard pamięci: DDR5-8000+ (OC) Gniazdo procesora: Socket AM5 Obsługiwane typy procesorów: AMD Ryzen™ (AM5) Uwagi do procesora: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Ilość złącz pamięci DDR5: 4 Tryb pracy pamięci RAM: Dual Channel Uwagi do pamięci RAM: Adjustments will be made based on the specifications of mass-produced, ASUS Enhanced Memory Profile (AEMP), depending on the CPU and memory configuration, for more information please, ECC and Non-ECC Un-buffered DIMM, memory products available on the market., Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function., refer to CPU/Memory Support list under the Support tab of product, Supported memory types, data rate (speed), and number of DRAM modules vary, Supports AMD Extended Profiles for Overclocking (EXPO™) Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 3x M.2 Uwagi do kontrolera SATA: - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - Ryzen™ 7000 Series Processors: RAID 0/1/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, 4 x SATA 6Gb/s port(s), AMD B850 Chipset:, AMD RAIDXpert2 Technology:, AMD Ryzen 8000 Series Desktop Processors:, AMD Ryzen 9000 & 7000 Series Desktop Processors:, Specifications vary by CPU types Gniazda karty graficznej: DisplayPort, HDMI Uwagi do karty graficznej: AMD CPU specifications, Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 8K@30Hz as specified in DisplayPort 1.4 Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Gniazda karty dźwiękowej: 5x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu Uwagi do karty dźwiękowej: 7.1 Surround Sound audio., and speakers, Audio Cover, Audio Shielding, Dedicated audio PCB layers, Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for, High quality 120 dB SNR stereo playback output and 113 dB SNR recording, Impedance sense for front and rear headphone outputs, input (Line-in), Internal audio Amplifier to enhance the highest quality sound for headphone, Premium audio capacitors, Supports up to 32-Bit/192 kHz playback, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Unique de-pop circuit Złącza PCI Express x16: 2 Uwagi do złącz PCI: - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), - 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x1 slot, AMD B850 Chipset:, AMD Ryzen 9000 & 7000 Series Desktop Processors:, AMD Ryzen™ 8000 Series Desktop Processors :, Specifications vary by CPU types Uwagi do karty sieciowej: TUF LANGuard Maksymalna ilość portów USB 2.0: 8 Maksymalna ilość portów USB 3.x: 11 Porty USB na panelu tylnym: 4x USB 2.0 + 4x USB 3.0 + 3x USB 3.1 + 1x USB 3.2 Type-C Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) Port PS/2: Brak Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM Port równoległy (LPT): Brak Inne porty i gniazda: 10-1 pin System Panel header, 3x 4-pin Chassis Fan headers, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, BIOS FlashBack button , Chassis intrusion header, Clear CMOS button(s), Front Panel Audio header (AAFP) Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) Złącza PCI Express x1: 1 Zawiera baterię / akumulator: Tak
