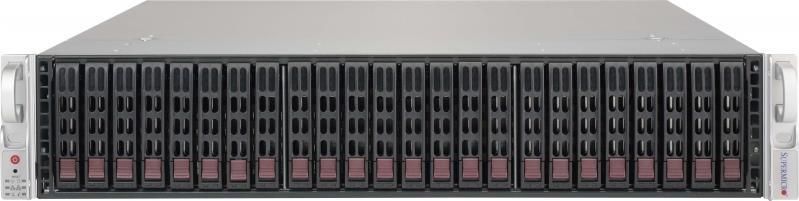

Supermicro CSE-216BE2C-R741JBOD Skała

Product SKUs CSE-216BE2C-R741JBOD SuperChassis 216BE2C-R741JBOD Form Factor 2U JBOD storage chassis Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Net Weight 55 lbs (24.95 kg) Gross Weight 60 lbs (27.22 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 …

od 9 523,82 Najbliżej: 24 km

Liczba ofert: 1

Oferta sklepu

Opis

Product SKUs CSE-216BE2C-R741JBOD SuperChassis 216BE2C-R741JBOD Form Factor 2U JBOD storage chassis Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) Net Weight 55 lbs (24.95 kg) Gross Weight 60 lbs (27.22 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Drive Bays 24 x 2.5" hot-swap HDD bay for JBOD solution Backplane 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 1 Network Activity LEDs Systems Cooling Fans 3 x 80x38mm hot-swap cooling fan(s) System Monitoring IPMI Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 740W Redundant Platinum Power Supply W/PMbus Power Efficiency 94% Total Output Power and Input 740W with Input 100 - 240Vac AC Input Frequency 50-60Hz Dimensions (L x W x H) 346 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 61.7A / Min: 0.2A (100Vac - 240Vac) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT216-2824 O/P: 12V/100 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification Platinum Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC FCC class A TUV/CB UL/CUL

Specyfikacja

Podstawe informacje

Kod producenta
  • CSE216BE2CR741JBOD
Producent
  • SuperMicro
