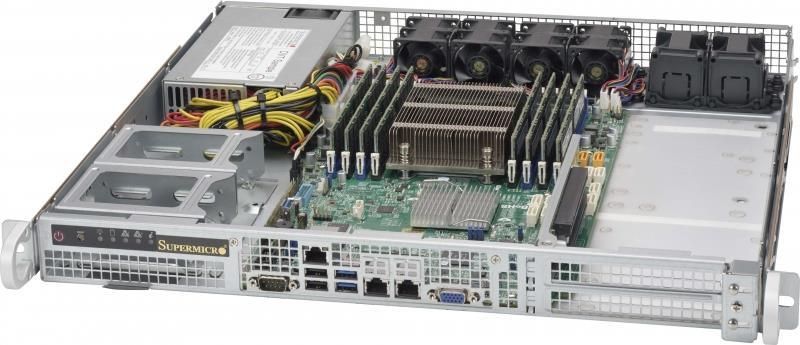

Supermicro CSE-515-350 Radlin

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-515-350 SuperChassis 515-350 (No Paint) Form Factor 1U - Support STD and WIO MB Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 16.9" (429mm) Gross Weight 16 lb (7.26 kg) Packaging 27 (W) x 8(H) 24 (L) Available Color No Paint Expansion Slots Up to Without Universal I/O (UIO) Card: 2 full height expansion slot(s) Drive Bays Internal Bay • Up to Optional 4x 2.5" fixed with bracket • Up to 1x 3.5" fixed drive bay Front Panel Buttons • Power On/Off button • System Reset Button LEDs • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED Motherboard (for CSE-515-350 ) X10SRM-F X10SRM-TF System Cooling Fans 4x 40x56mm PWM fan 2x fans for AOC cooling System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 350W AC power supply w/ PFC AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp +5V Max.: 15 Amp Min.: 0.2 Amp +5V standby Max.: 3 Amp Min.: 0 Amp +12V Max.: 29 Amp Min.: 0.5 Amp -12V Max.: 0.2 Amp Min.: 0 Amp +3.3V Max.: 12 Amp Min.: 0.2 Amp Certification Platinum Level Certified [ Test Report ]Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
