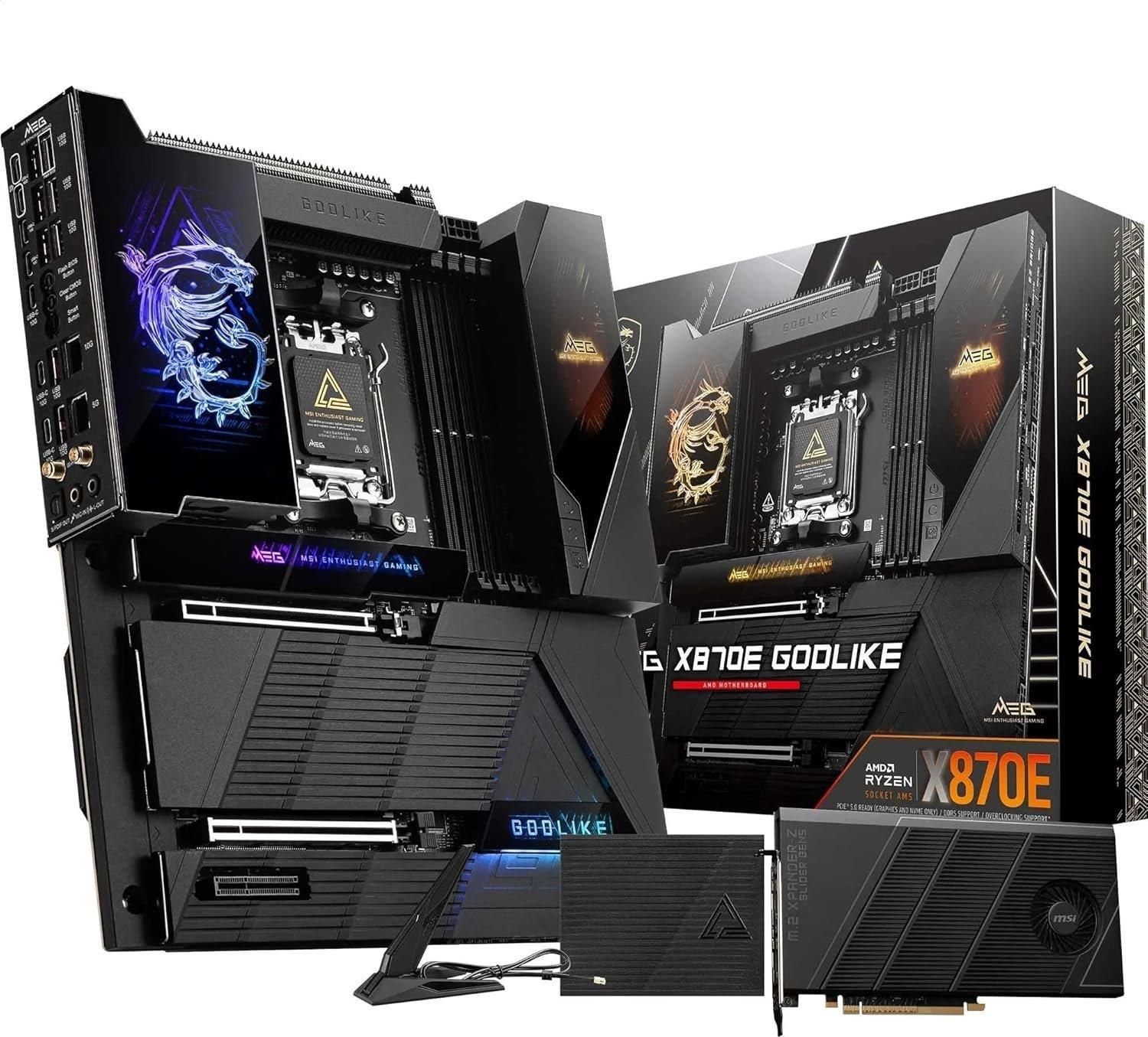

Msi MEG X870E GODLIKE (7E48001R) Radków

Płyta MSI MEG X870E GODLIKE DDR5 SATA3 M.2 USB4 WiFi BT PCIe5.0 AM5 E-ATX Specyfikacja Pamięć Ilość złącz pamięci DDR5: 4 Maksymalna wielkość pamięci: 256 GB Tryb pracy pamięci RAM: Dual Channel Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC), DDR5-8266 (OC), DDR5-8333 (OC), DDR5-8400 (OC) Uwagi do pamięci RAM: Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: - 1DPC 1R Max speed up to 8400+ MT/s - 1DPC 2R Max speed up to 6400+ MT/s - 2DPC 1R Max speed up to 6400+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only Grafika Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora) Gniazda karty graficznej: 2x USB4 Type-C Uwagi do karty graficznej: USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed. Dźwięk Zintegrowana karta dźwiękowa: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF Uwagi do karty dźwiękowej: Supports up to 32-Bit/384 kHz playback on front panel Łączność / komunikacja Port LAN: 1x 10 Gigabit LAN Marvell® AQC113CS Port LAN: 1x 5 Gigabit LAN Realtek® 8126 Maksymalna ilość portów USB 2.0: 4 Maksymalna ilość portów USB 3.x: 19 Maksymalna ilość portów USB 4.0: 2 Porty USB na panelu tylnym: 8x USB 3.1 + 5x USB 3.1 Type-C + 2x USB4 Type-C Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.1 Type-C + 1 USB 3.2 Type-C Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be Port Bluetooth: Bluetooth V5.4 Uwagi do WiFi / BT: Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports Bluetooth 5.4, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2 The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details Bluetooth 5.4 will be ready in Windows 11 version 24H2 Techniczne Gniazdo procesora: Socket AM5 Obsługiwane typy procesorów: AMD Ryzen™ (AM5) Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Format płyty: Extended-ATX Chipset płyty głównej: AMD X870 Złącza Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10 + 7x M.2 - RAID 0, 1, 10 Uwagi do kontrolera SATA: 7x M.2 - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G - M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices - M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card. ** Please refer to the manual for M.2 SSD heatsink restrictions Złącza PCI Express x16: 2 Złącza PCI Express x4: 1 Uwagi do złącz PCI: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots: • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. Port PS/2: Brak Port szeregowy (COM): Brak Port równoległy (LPT): Brak Inne porty i gniazda: CPU Fan 2x Combo Fan (Pump_Sys Fan) EZ Conn-header (JAF_2) 2x Front Panel Chassis Intrusion (JCI) 2x Thermal Sensor connectors Tuning Controller Connector Addressable V2 RGB LED connector V-check point Front Type-C Quick Charge Connector(PD_PWR1) Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin) Fizyczne Wymiary [S x W] (mm): 304,8 x 277 Pozostałe parametry Opakowanie: BOX Wyposażenie dodatkowe: EZ Wi-Fi antenna, EZ M.2 Clip II Removal Zawiera baterię / akumulator: Tak Informacje dodatkowe: Support for Windows 11 64-bit Kod EAN: 4711377276221
