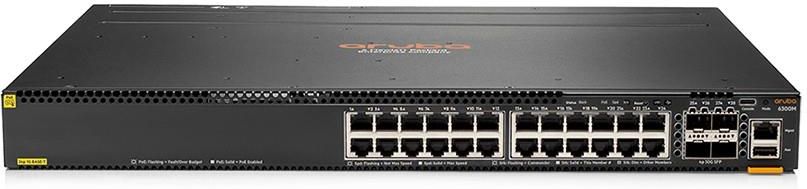

Data sheet : HP Enterprise Aruba - a Hewlett Packard Enterprise company CX 6300M - L3 - Gigabit Ethernet (10/100/1000) - Rack mounting:root {/* This is the height of the company logo (75px) + padding top and bottom (10px each) */--pdf-header-height: 95px;/* Adjust to resulting footer height */--pdf-footer-height: 0px;} HP Enterprise Aruba - a Hewlett Packard Enterprise company CX 6300M - L3 - Gigabit Ethernet (10/100/1000) - Rack mounting 880 Gbps - 660 Mpps - 48x 10/100/1000BaseT RJ-45 - 4x 1/10/25/50G SFP - USB C - OOBM - USB A - 44x442x385 mm Group Network Equipment Manufacturer HP Enterprise Manufacturer item no. JL663A EAN/UPC 0190017339481 Marketing The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation and core deployments.A powerful distributed architecture supports scalable, non-blocking performance to future-proof your network for tomorrow’s unpredictable demands. This series has built-in, high-speed uplinks and include models with 24 SFP+ ports and full-density 60W PoE with multi-gigabit Ethernet for a high-performance network.A cloud-centric design with a fully programmable OS delivers automation and simplicity, including easy-to-use configuration tools for error-free installs. Built-in monitoring and analytics across the network provide operators with immediate troubleshooting and problem resolution insights. Main features General Switch layer L3 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Basic switching RJ-45 Ethernet ports quantity 48 USB 2.0 ports quantity 1 Console port USB Switching capacity 496 Gbit/s Networking standards IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3bt Rack mounting Y Extended details Design Rack mounting Y Stackable Y Product colour Black Airflow direction Front-to-back airflow Number of fans 2 fan(s) Certification EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013, UL 60950-1 2nd Ed, CAN/CSA-C22.2; No. 60950-1-07, IEC 60950-1:2005, EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013, FCC 15 A, ICES-003 A, VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010 Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 48 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) SFP module slots quantity 4 Console port USB USB 2.0 ports quantity 1 Power over Ethernet (PoE) Power over Ethernet (PoE) N Network Networking standards IEEE 802.1D,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3bt 10G support Y Port mirroring Y IP routing Y Policy-based routing Y Link aggregation Y Auto MDI/MDI-X Y Spanning tree protocol Y VLAN support Y Power AC input voltage 100 - 240 V AC input frequency 50/60 Hz Input current 3/1.2 A Power consumption (max) 75 W Management features Switch layer L3 Quality of Service (QoS) support Y Configuring Location Settings (CLI) Y System event log Y Performance Physical stacking (units) 10 Built-in processor Y Processor frequency 1800 MHz Internal memory 8192 MB Flash memory 32000 MB Noise level 28.7 dB Multicast features Multicast support Y Multicast MAC address table 32000 entries IPv4 multicast entries 8000 IPv6 multicast entries 8000 Number of multicast groups filtered 8000 MLD entries 4000 Data transmission Switching capacity 496 Gbit/s Throughput 369 Mpps Latency (1 Gbps) 2.28 µs Latency (10 Gbps) 1.46 µs Number of queues 8 Packet buffer memory 8 MB Security DHCP features DHCP relay,DHCP server Access Control List (ACL) Y IGMP entries 8000 SSH/SSL support Y Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 15 - 95 % Storage relative humidity (H-H) 15 - 90 % Operating altitude 0 - 3040 m Non-operating altitude 0 - 4600 m Weight & dimensions Width 442 mm Depth 385 mm Height 44 mm Weight 5.51 kg Optical fiber Transmission distance (max) 10 km Protocols Routing protocols OSPF,OSPFv3 Packaging data Rack mount kit Y
