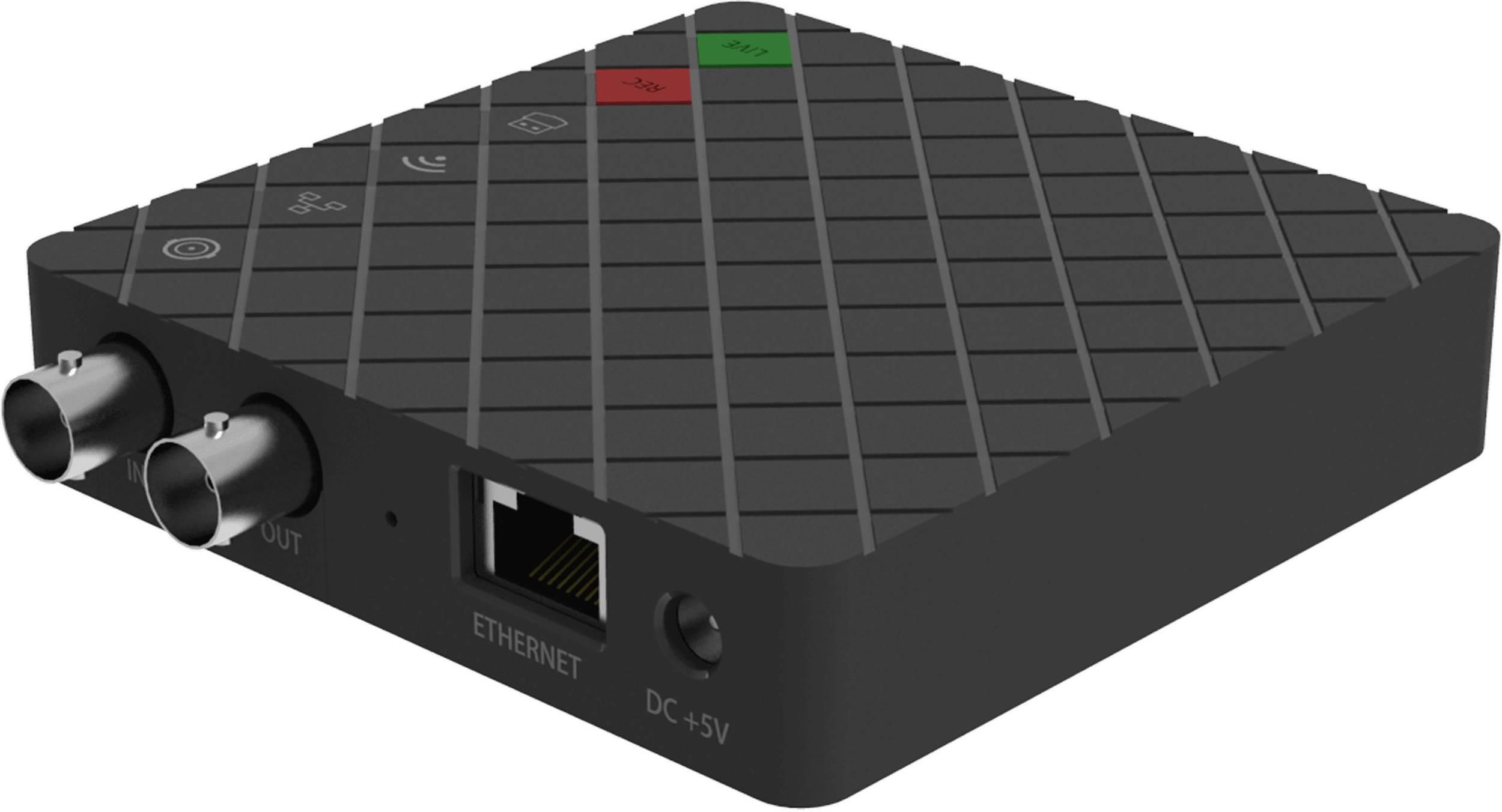

Magewell Ultra Stream SDI Enkoder streamer wideo FullHD USB Ethernet Wifi Poznań

One-channel 3G SDI encoder - Record and stream 1 channel of 3G SDI + embedded audio + microphone, Loop-through SDI + embedded audio Interface Video input interface SDI x1 Support up to 2048x1080p60 Loop-through Interface SDI x1 Support up to 2048x1080p60 USB Interface USB 2.0 for USB Flash Drive or USB 3G/4G Modem Audio Interface Headphone Output Microphone Input Network Interface Ethernet Interface Power Interface DC+5V H.264 Encoding Main Stream Up to 1080p60 Sub Stream Up to 720p30 HEVC Encoding Record to MP4 Streaming Server Preset Youtube Live, Twitch, Facebook Live Custom RTMP Software Environment Mobile OS Android, iOS Firmware Upgradable firmware Others LED Indicators 2-year warranty Internal SD card Supported Mobile Clients Android Android 5.0 and above iOS iOS 9.0 and above iPhone iPhone 5s iPhone SE iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus iPhone 7 / iPhone 7 Plus iPhone 8 / iPhone 8 Plus iPhone X iPod Touch iPod Touch 5 iPod Touch 6 Supported Web Browser Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above Input Interfaces BNC SD/HD/3G SDI 3.5mm audio jack Microphone interface Output Interfaces BNC SD/HD/3G SDI USB USB 2.0 3.5mm audio jack Headphone interface Network Interfaces Wired Ethernet 10/100/1000Mbps Ethernet Wi-Fi IEEE 802.11 a/b/g/n/ac USB USB 3G/4G Modem (not included) Bluetooth Bluetooth 4.0 BLE SDI Specific Features Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards Support for 2K (2048x1080) input and loopthrough signals Support for 8/10/12-bit color depths Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats Limited support for the first stream of 3Gb-DS Limited support for the first link of dual link interfaces YCbCr 4:2:2 10-bit 1080p 50/59.94/60: output as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: output as 4:2:2 RGB 4:4:4: R/B sub-sampled Analog Audio Features Extraction of stereo embedded SDI audio for recording and output via 3.5mm stereo mini-jack Line Out Recording and streaming analog audio via 3.5 mm microphone interface Streaming Features Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server Streaming to Facebook, Twitch and YouTube platforms Support for streaming to 2 servers simultaneously Recording Features (to USB Flash Drive) Support for H.264/HEVC (video) and AAC High Quality (audio) encoding Supports recording at input signal resolution up to 2048x1080 Support for 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1200x900, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 480x360 resolutions Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates Support for recording as MP4 files USB Flash Drive file system format: FAT32, NTFS, exFAT, VFAT Recording Features (to Mobile Device) Support for recording at up to 1280x720, 30fps Support for recording as MP4 files Take still image snapshots during recording Save recording files and screenshots to system album Input signal previewing Timer recording: 15s, 30s, 1min, 2min, 5min Remote Control Features in App Remotely control recording and streaming Remotely check device status by multiple users simultaneously Support for setting volume, network, recording and live streaming parameters Support for checking and safely updating device firmware (can also reset to factory firmware version) Simultaneous main stream and sub stream encoding with customizable parameters The bitrate for main stream is up to 8 Mbps while for sub stream is 1 Mbps Support for modifying output AAC bitrate In-app online help Support for multiple users log-in simultaneously Support for device configuration using Web UI LED Indicator Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive Indicates the working state of the device: startup, recording, streaming, update Form Factor 94.20mm x 94.20mm x 22.30mm Accessories AC adapter Power Supply and Consumption Power port 5V/2A Max power consumption: ~6.0 W Working Environment Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing
