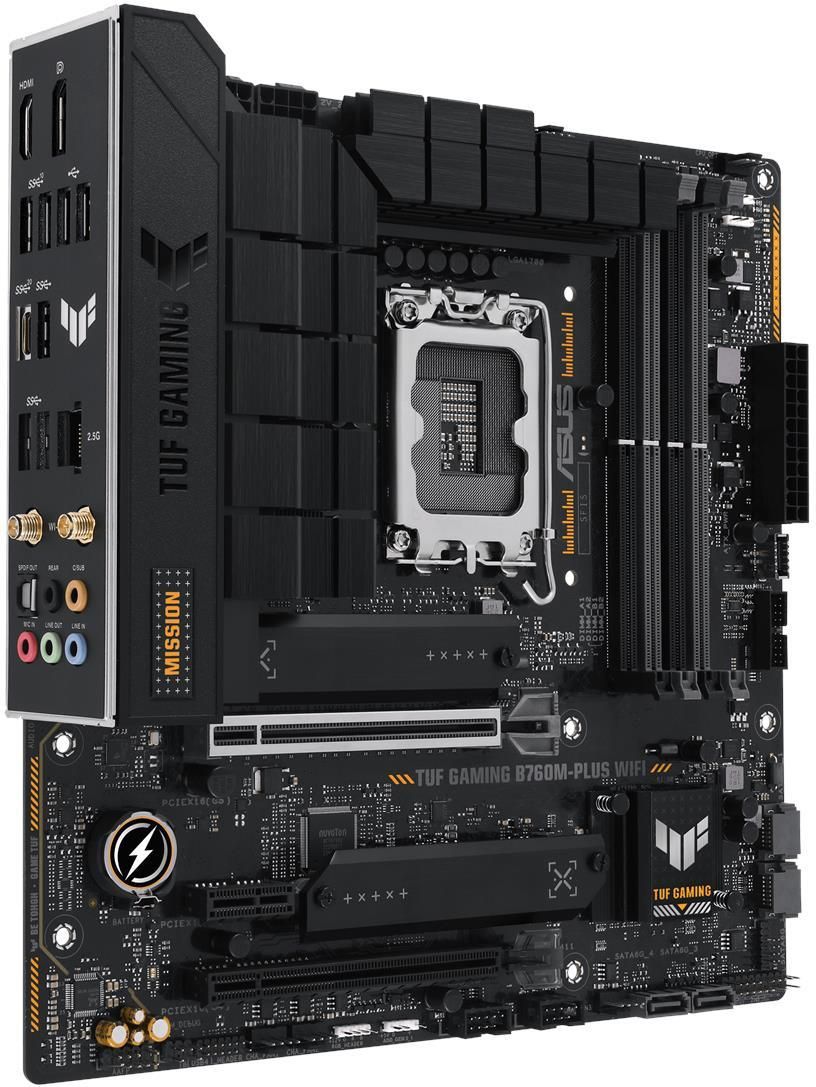

ASUS TUF GAMING B760M-PLUS WIFI Pajęczno

Gniazdo procesora: Socket 1700 Obsługiwane typy procesorów: Intel Core i3 12th Generation, Intel Core i5 12th Generation, Intel Core i7 12th Generation, Intel Core i9 12th Generation, Intel Core i3 13th Generation, Intel Core i5 13th Generation, Intel Core i7 13th Generation, Intel Core i9 13th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700) Uwagi do procesora: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types Format płyty: Micro-ATX BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Chipset płyty głównej: Intel® B760 Ilość złącz pamięci DDR5: 4 Maksymalna wielkość pamięci: 192 GB Tryb pracy pamięci RAM: Dual Channel Standard pamięci: DDR5-7200+ (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600, DDR5-5400, DDR5-5200, DDR5-5000, DDR5-4800 Uwagi do pamięci RAM: Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, Supported memory types, data rate (speed), and number of DRAM modules, vary depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support under the Support tab or visit Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2 Uwagi do kontrolera SATA: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 Wbudowana karta graficzna: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora) Gniazda karty graficznej: HDMI, DisplayPort Uwagi do karty graficznej: Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4., Supports 4K@60Hz as specified in HDMI 2.1. Zintegrowana karta dźwiękowa: Realtek ® 7.1 Surround Sound High Definition Audio CODEC Gniazda karty dźwiękowej: 5x Audio Jack, Wyjście optyczne S/PDIF Uwagi do karty dźwiękowej: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers Złącza PCI Express x16: 2 Złącza PCI Express x1: 1 Uwagi do złącz PCI: Intel® 13th & 12th Gen Processors:, - 1 x PCIe 5.0 x16 slot, Intel® B760 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 4.0 x1 slot, To ensure compatibility of the device installed, please refer to Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®) Uwagi do karty sieciowej: TUF LANGuard Maksymalna ilość portów USB 2.0: 6 Maksymalna ilość portów USB 3.x: 9 Porty USB na panelu tylnym: 2x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 1x USB 3.2 Type-C Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port) Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax Port Bluetooth: Bluetooth V5.2 Uwagi do WiFi / BT: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications Port PS/2: Brak Port szeregowy (COM): Brak Port równoległy (LPT): Brak Inne porty i gniazda: 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x Addressable Gen 2 header, AURA RGB header, Thunderbolt™ (USB4®) header Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) Wymiary [S x W] (mm): 244 x 244 Opakowanie: BOX Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antenna, 1 x TUF Gaming sticker, 1 x M.2 Rubber Packages, 1 x Screw package for M.2 SSD, 1 x TUF Certification card, 1 x User guide Informacje dodatkowe: Manageability: WOL by PME, PXE, Operating System: Windows® 11, Windows® 10 64-bit
