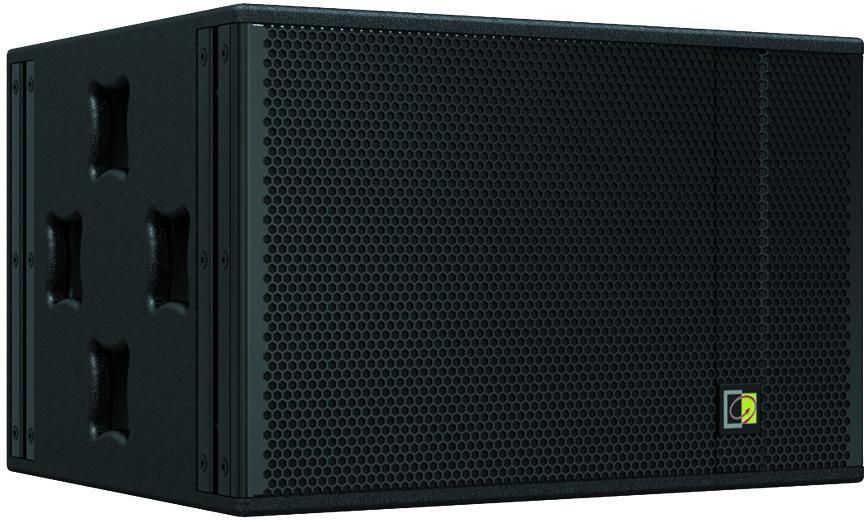

AUDAC FX315 Obrzycko

High-output cabinet 15" High quality 18 mm plywood Integrated carry handle on both sides Integrated metal rigging frame DuraCoat™ texture paintwork IP55 Ingress protection High output 3-way active driven system 90° x 40° Rotatable horn The FX series is a unique and versatile speaker system series. When you combine the FX1.18 bass cabinet with the FX3.15 3-way active speaker cabinet, this truly modular system can be scaled and adapted for every application where a powerful system with a high clarity and sound quality is required. The compact enclosures are provided with weatherproof and scratch resistant DuraCoat textured paintwork and are fitted with eight carry handles allowing easy carriage and handling of the system. The integrated metal rigging frame allows easy and secure rigging, allowing multiple cabinets to be rigged together. The FX3.15 is a 3-Way high-output, active driven compact High / Mid / Mid-Bass speaker cabinet which is a part of the unique and versatile FX series system. This three-way cabinet includes a 15” horn-loaded Mid-Bass driver, 6” loaded mid speaker and 1.75” PEEK (Polyether ether ketone) compression driver. The entire system has a power handling of 750 Watt RMS with a maximum power of 1500 Watt. The Mid-Bass section takes part for 500 Watt RMS while the Mid section takes part for 200 Watt RMS and the High section represents 50 Watt RMS. The horn with a coverage pattern of 90° x 40° incorporates both High and Mid frequency drivers which can be rotated allowing complete flexibility in selection of horizontal & vertical as well as left & right positioning. This system shall be active processed and powered by separate amplifiers for each section. The connections for each sections are performed using two 8-pin speakon compatible connectors, allowing linkthrough when multiple identical speakers are used in the same system. Specyfikacja techniczna AUDAC FX3.15: System specifications Speaker type 3-way high outputs speaker cabinet Peak power handling 3000 W Program power handling 1500 W RMS/AES power handling 750 W Impedance 8 Ω Sensitivity (1W/1m) 105 dB Sound Pressure (Max. W/1m) 134 dB Frequency Response (± 3 dB) 130 Hz - 20 kHz Range (-10 dB) 85 Hz - 20 kHz Crossover Type Active driven system Dispersion Horizontal 90° (Rotatable) Vertical 40° (Rotatable) Ingress Protection rating IP55 Connectors 2 x 8-pin Speakon compatible connector (Allowing linkthrough) Drivers HF 1.75” PEEK MF 6” Neodymium LF 15” ferrite Product Features Dimensions 714 x 456 x 580 mm (W x H x D) Weight 47.500 kg Construction 18 mm solid plywood with Dura Coat weather and scratch resistant coating Mounting & handling Carry handles 8 Integrated carry handles Rigging Integrated metal rigging frame
