Audac Wx502Mk2/Ow Biały Nekla

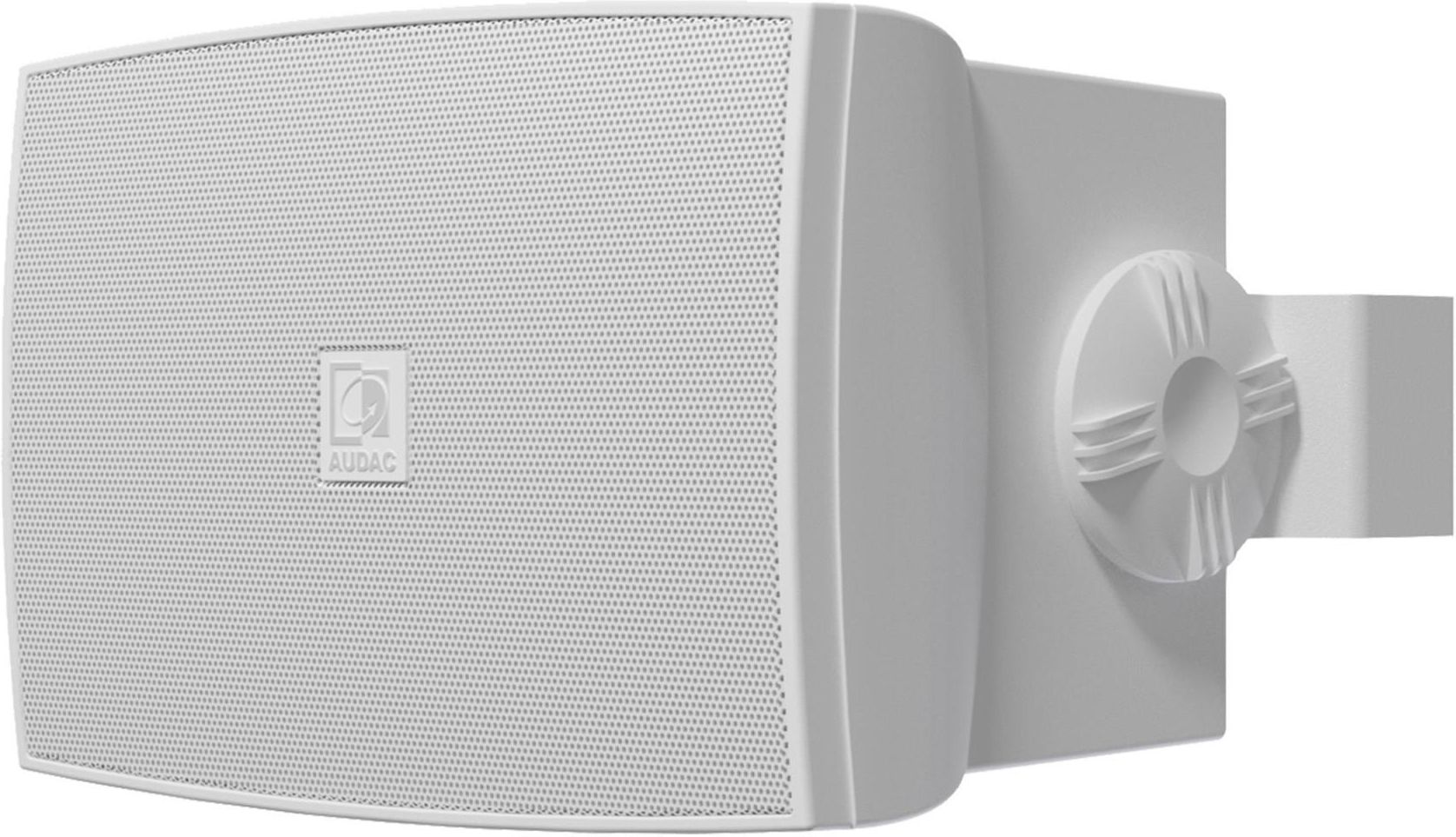

Outdoor universal wall speaker 5 1/4" 1" Dome tweeter 5 1/4" Low frequency loudspeaker Vertical and horizontal mounting Aluminum grill Aluminum mounting bracket (MK2 version) AWX5™ waterproof connector Multi-tapping 70V / 100V line transformer The WX502/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt. The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX502/O vertically as well as horizontally. Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum grill allows water to flow out and the rotatable 5 pole waterproof connector with power tap selection makes sure that the speaker meets the IP55 standard. The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload. Specyfikacja techniczna AUDAC WX502MK2/OW System specifications Connectors Waterproof AWX-5 connector Crossover Frequency 2.5 kHz Type Passive built-in Drivers HF 1” LF 5” Frequency Range (-10 dB) 55 Hz - 20 kHz Response (± 3 dB) 70 Hz - 18 kHz Impedance 8 Ω Ingress Protection rating IP55 Peak power handling 200 W Program power handling 100 W Sensitivity (1W/1m) 87 dB Sound Pressure (Max. W/1m) @ 100 V 102 dB @ 8 Ω 104 dB Speaker type 2-way Dispersion Horizontal 110° RMS/AES power handling 50 W Dispersion Vertical 110° Line Transformer Tappings 1 125 Ω - 100 V / Not used - 70 V / 40 W 2 250 Ω - 100 V / 40 W - 70 V / 20 W 3 500 Ω - 100 V / 20 W - 70 V / 10 W Product Features Dimensions 212 x 147 x 136 mm (W x H x D) Weight 2.540 kg Operating temperature -25 °C ~ 70 °C Construction ABS Mounting & handling Mounting bracket Front finish Aluminium grill Colours Black (RAL9005) (WX502MK2/OB) White (RAL9003) (WX502MK2/OW) Accessories Included Mounting bracket 5-pin connection cable (70 cm) AWC07 Optional AU570120005 - 5-pin cable 0.5 m AU570120025 - 5-pin cable 2.5 m AU570120050 - 5-pin cable 5 m
