Supermicro CSE-842XTQ-R606B Myszków

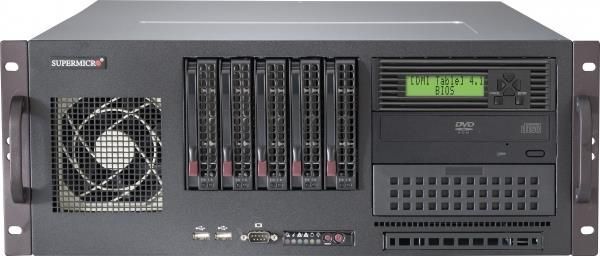

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-842XTQ-R606B SuperChassis 842XTQ-R606B (Black) Form Factor Industrial short-depth 4U rackmount chassis supports E-ATX, ATX and Micro-ATX motherboards; max. motherboard size 15.2" x 13.2" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 7.0" (178mm) Width 17.2" (437mm) Depth 20.5" (521mm) Gross Weight 46 lbs (20.9kg) Available Colors Black Expansion Slots 11x Expansion slots total: 7x Full-height, Full-length + 4x Full-height, Half-length Drive Bays Hot-swap 5x 3.5" SAS/SATA Hot-swap Drive Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) 3x 5.25" Peripheral Drive Bays 1x Slim DVD-ROM Drive Bay SAS / SATA Backplane SAS / SATA Hard Drive Backplane Front Panel Buttons Power On/Off Button System Reset Button LEDs Power LED Hard Drive Activity LED 2x Network Activity LEDs System Information LED Power Fail LED Ports 2x USB 2.0 Ports and 1x COM Port Motherboard (for CSE-842XTQ-R606B ) X9DRX+-F Server(s) for SC842XTQ-R606B 6048R-TXR 6047R-TXRF System Cooling Fans (Hot-plug) 1x Front 9cm Intake Cooling Fan 2x Rear 8cm Exhaust Cooling Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply with Power Distributor 600W Redundant High-Efficiency Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC AC Input 100-240V, 50-60Hz, 7.5-3.0A DC Output +5V standby: 3A +12V: 50A With Power Distributor +5V: 30 Amp +3.3V: 28 Amp -12V: 0.6 Amp Certification Platinum Certified [ Test Report ]Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
