Audac Mtx88 Marki

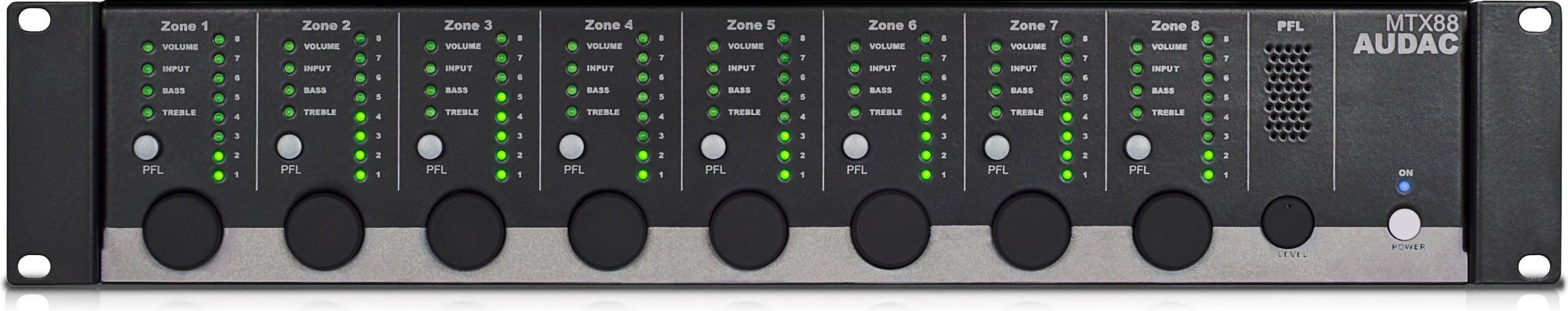

The MTX88 is the eight-zone version of the MTX series, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control. Four stereo line-level inputs are provided where to any line-level music source such as a CD-player, Tuner or MP3 player, ... can be connected. The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals. The MTX can be controlled by means of additional control panels, its fully functional web based interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone. The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone. A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down. AUDAC Touch™ compatible Using the freely available AUDAC Touch™ application for smart devices guarantees total system control and configuration from any device on any location and at any time. Individual zone control The front panel of the MTX shows a rotary button per zone with indication LED's for accessing controls and settings. Peripheral devices The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. Emergency power operation A 24 volts’ power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down. Specyfikacja techniczna AUDAC MTX88: System specifications Inputs Balanced Microphone Type 2 x Balanced Microphone Connector XLR Sensitivity 0 dBV ~ -50 dBV Phantom Power 15 V DC Signal / Noise > 80 dB THD+N (@ 1 kHz) < 0.05 dB EQ High ± 15 dB (12.5 kHz) Mid ± 15 dB (2.5 kHz) Low ± 15 dB (80 Hz) Unbalanced Stereo Type 4 x Stereo Unbalanced Line Connector RCA Sensitivity -14 dB ~ +9 dB Signal / Noise > 100 dB THD+N (@ 1 kHz) < 0.01 dB Wall Panel Type 8 x Wall panel input Connector RJ45 Other Type 1 x Priority mute contacts Outputs Type 8 x Stereo Balanced Line Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm) Impedance 51 Ω Level -70 dB ~ 0 dB EQ Treble ± 14 dB (2.5~20 kHz) Bass ± 14 dB (100 Hz) Frequency Response (± 3 dB) 20 Hz - 20 kHz Crosstalk (@ 1 kHz) -85 dB Control Front panel RS-232 TCP/IP (RJ45) Wall panel (RS-485) Audac Touch™ Web (Flash) Power Consumption 12 W Supply 100 ~ 240 V AC / 50 ~ 60 Hz 24 V DC (emergency Power) Socket Connections (AUDAC Touch™) 5 sockets Product Features Dimensions 482 x 88 x 335 mm (W x H x D) Weight 4.840 kg Unit height 2 HE Accessories Optional WP2xx Universal wall panel
