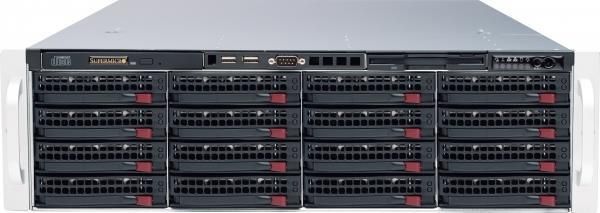

Supermicro SuperChassis 836TQ-R710B (Black) (CSE-836TQ-R710B) Libiąż

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-836TQ-R710B SuperChassis 836TQ-R710B (Black) Form Factor 3U chassis support for max. motherboard size - 13.68" x 13" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 5.2" (132mm) Width 17.2" (437mm) Depth 25.5" (648mm) Gross Weight 55 lbs (25kg) Available Colors Black Expansion Slots • 7x full-height full-length expansion slots Drive Bays Hot-swap 16x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended Backplane 3U Direct Attached Backplane, features: • 3Gb/6Gb support • SES-2 Enclosure Management Support • SAS/SATA support • 16 SATA connectors Peripheral Drives DVD-ROM Slim DVD-ROM Drive Floppy Slim 1.44MB Floppy Drive (Optional) Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Ports 2x USB Ports & DB9 COM Port Exception caught! Variable PRODID is undefined. System Cooling Fans • 3x 80mm Hot-swap PWM Fans • 2x 80mm Rear-exhaust Fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 710W DC-DC high-efficiency power supply + PDB DC Input Voltage Voltage Range = -36V to -75V (24A - 11A) Nominal Voltage = -48V +5V standby 4 Amp +12V 59 Amp +5V 30 Amp +3.3V 20 Amp -12V 0.6 Amp Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
