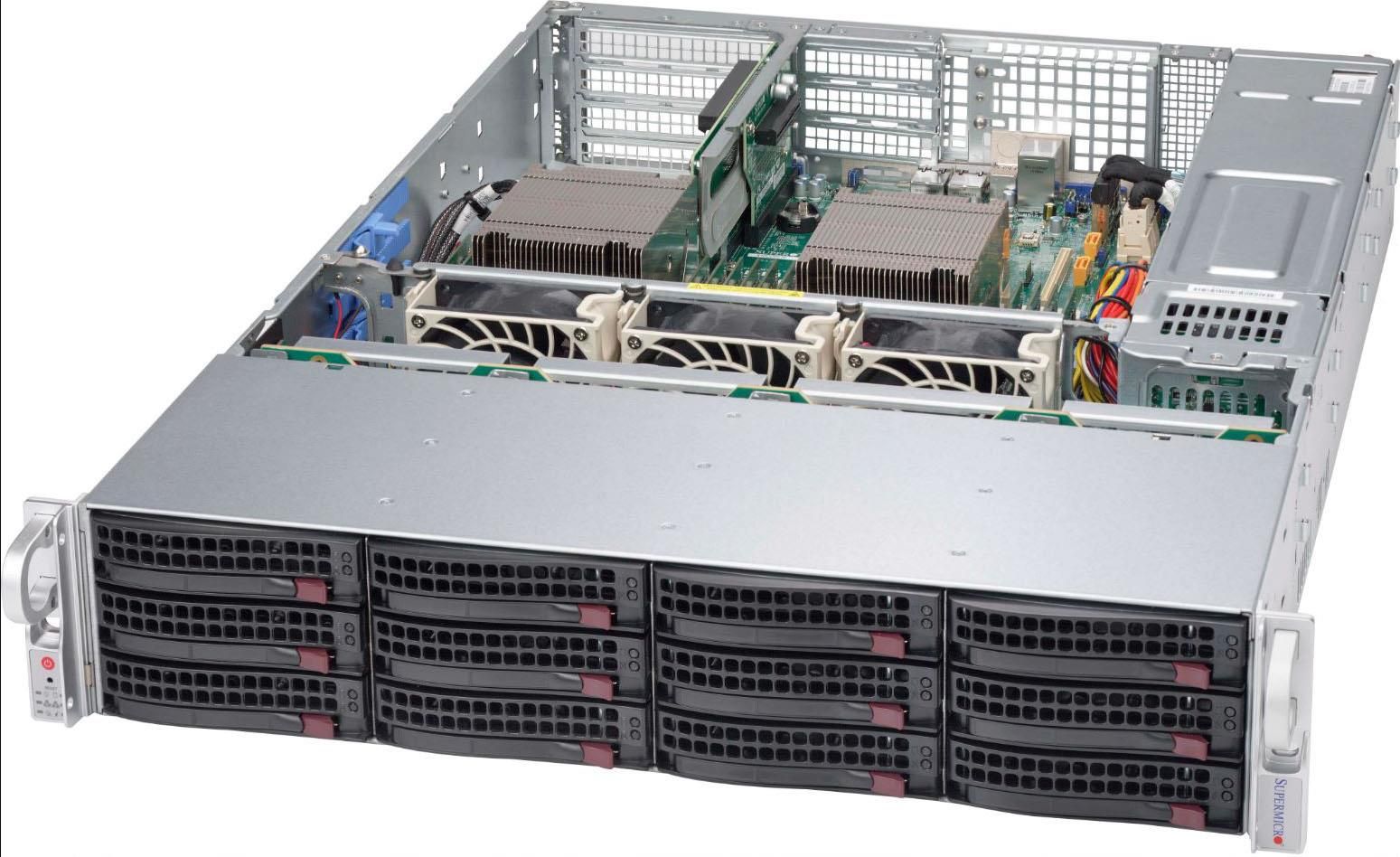

Supermicro Rack 2U CSE-826BAC4-R1K23W Libiąż

Product SKUs CSE-826BAC4-R1K23WB SuperChassis 826BAC4-R1K23WB Form Factor 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed Processor Support Dual and Single Intel® and AMD processors Dimensions Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) Net Weight 40 lbs (18.14 kg) Gross Weight 55 lbs (24.95 kg) Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) Available Color Black Expansion Slots WIO Slots (4x Full-height, Half-length + 3x Low-profile) Drive Bays 12 x 3.5" hot-swap drive bay Optional 2 x 2.5" hot-swap drive bay 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD Backplane 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices Front Panel Buttons Power On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED Unit Identification (UID) LED Motherboard (for CSE- 826BAC4-R1K23WB) X11DDW-L X11DDW-NT Servers (for CSE- 826BAC4-R1K23WB) 6029P-WTRT Systems Cooling Fans 3 x 8cm high-performance PWM fan(s) Optional 5 x 6cm 4pin high performance fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm Power Efficiency 96% Total Output Power and Input 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vac 1200W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 83A (100Vac - 127Vac) Max: 100A (200Vac - 240Vac) Max: 100A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT826-S8824 O/P: 12V/135A +5V Max: 40A +3.3V Max: 24A -12V Max: 0.6A Certification Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
