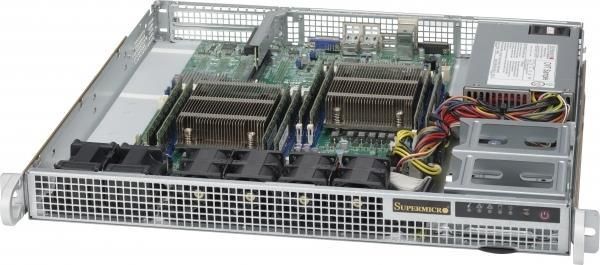

Supermicro CSE-514-505 Kraków

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-514-505 SuperChassis 514-505 (No Paint) Form Factor 1U chassis for motherboard support size of E. ATX 10.3" x 13", Proprietary 8.15" x 13.05", Proprietary 12.3" x 13", Processor Support Supports dual, single …

od 1 709,40 Najbliżej: 1,5 km

Liczba ofert: 1

Oferta sklepu

Opis

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-514-505 SuperChassis 514-505 (No Paint) Form Factor 1U chassis for motherboard support size of E. ATX 10.3" x 13", Proprietary 8.15" x 13.05", Proprietary 12.3" x 13", Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 16.9" (429mm) Gross Weight 16 lb (7.26 kg) Packaging 27 (W) x 8(H) 24 (L) Available Color No Paint Expansion Slots 2 full height expansion slot(s) Drive Bays Internal Bay • Up to 2x 2.5" fixed with bracket • SAS or enterprise SATA HDD only recommended Front Panel Buttons • Power On/Off button • System Reset Button LEDs • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED System Cooling Fans 4x 40x56mm PWM fan 2x fans for AOC cooling Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC AC Input 100-240V, 50-60Hz, 6.6A max DC Output +3.3V: 12A +5V: 15A +5V standby: 3A +12V: 41A -12V: 0.2A Certification Platinum CertifiedRegulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant

Specyfikacja

Podstawe informacje

Kod producenta
  • CSE514505
Producent
  • SuperMicro
