Supermicro Aoc-Slg3-2H8M2-O 2X Hybrid Nvme/Sata M.2 Raid Carrier, Standard Lp,Rohs (AOCSLG32H8M2O) Kraków

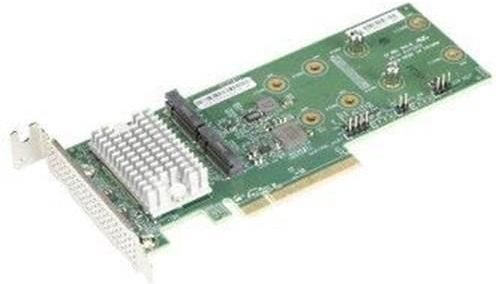

Supermicro Low Profile 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID CarrierThe Supermicro MegaRAID Low Profile AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SLG4-2H8M2 supports adjustable stand-offs in 22110, 2280, & 2242 M.2 SSD form factors with RAID 0 and RAID 1. This product is only available through Supermicro. Compatible with Supermicro motherboards only. Product Note: Supermicro AOC-SLG4-2H8M2, as a Gen 4 NVMe M.2 adapter, is carrying its new accessory - a uniquely designed heatsink - when being compared to the previous gen product - AOC-SLG3-2H8M2 - for Gen 3 NVMe M.2 and without heatsink. While adopting 22x110mm M.2s, it is suggested to ONLY select the M.2s qualified by referencing each system’s AVL with AOC-SLG4-2H8M2. AOC-SLG4-2H8M2 carries SAS 3808 chipset, a 12Gb/s SAS/SATA controller. Thus NVMe M.2s populated on the carrier are exposed with SAS addresses and recognized as SATA devices or SAS drives by OS or BIOS. Key Features: Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1. •Broadcom SAS3808 I/O RAID Controller •x8 PCIe Gen4 Host interface •Dual M-Key sockets (for 2x M.2 SSD) •Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors •Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules •Supports RAID 0 and RAID 1 •Support MCTP over PCIe/ I2C •Support BMC-enabled management •Support secure erase •Support hardware secure boot •Support on-board LEDs for SSD Activity and Status •UEFI Configuration utility •OS Support: Windows, Linux, and VMWare •Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded) •Thermal operating range: System dependent (55°C or higher w/ enough airflow)
