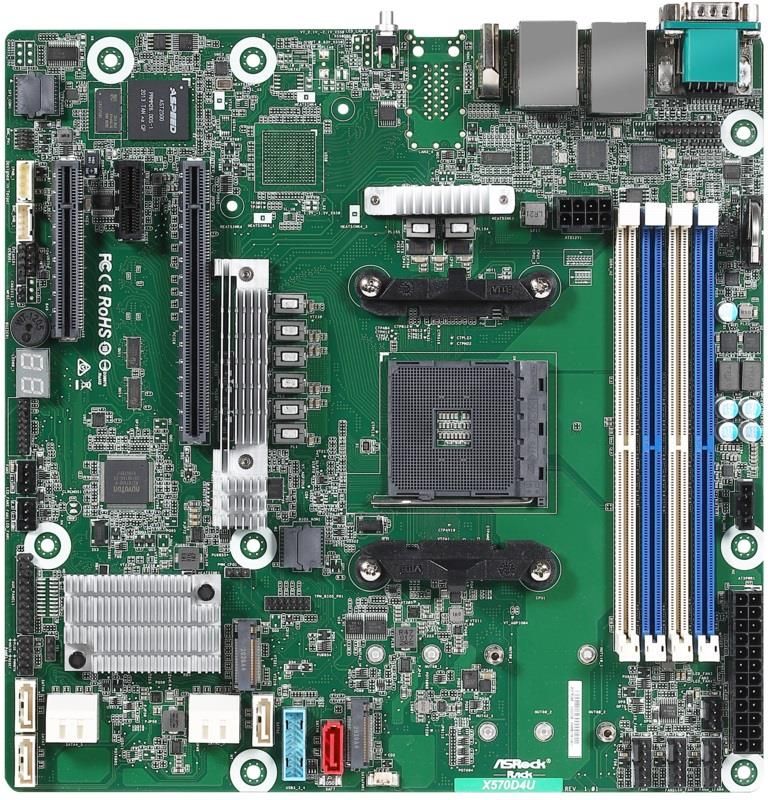

Asrockrack Asrock X570D4U, 1Xskt Am4, Amd Ryzen, X570, Sata, 2Xm.2, 2Xgbe, Ipmi (X570D4U) Kraków

X570D4U micro-ATX (9.6"x 9.6") supports AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics 4 DIMMs 1 PCIe 4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1 Dual 1 GbE RJ45 2 M.2 (PCIe4.0x4/ SATA) 8 SATA 6Gb/s HDMI AST2500 Remote management (IPMI) Specyfikacja Parametry płyty głównej Standard micro-ATX Wymiary 9.6"x9.6" (244mmx 244mm) Procesor CPU supports: AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 4000 and 3000 Series Desktop Processors 3rd Gen AMD Ryzen™ Desktop Processors 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics Socket AM4 PGA 1331 Zasilanie 105W Chipset AMD X570 Pamięć operacyjna Pojemność 4 DIMM slots (2DPC) Rodzaj 288-pin DDR4 ECC* and non-ECC UDIMM * ECC support varies by CPU DIMM Size Per DIMM up to 32GB per DIMM DIMM Frequency AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 3rd Gen AMD Ryzen™ Processors : up to 3200 MHz 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics: up to 2666 MHz Napięcie 1.2V Sloty rozszerzeń PCIe 4.0 x 16 SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics PCIe 4.0 x 8 SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics PCIe 4.0 x 1 SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics M.2 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics Magazynowanie Kontroler SATA X570 (12 SATA 6Gb/s, support RAID 0/1/10): 8 SATA 7-pin connectors, including 1 support SATA DOM 4 SATA via optional M2-HD M.2 device Ethernet Additional GbE Controller 2 RJ45 (1GbE) by Intel® i210 Zarządzanie Kontroler BMC ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN Grafika Kontroler ASPEED AST2500: 1 DB15, 1 (15-pin) header AMD Ryzen™ 4000 Series Desktop Processors with Radeon™ Graphics/ 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics: 1 HDMI Tylny panel I/O HDMI 1 Port VGA 1 Port USB 3.2 2 Port Lan 2 RJ45(1GbE) Dedicate LAN 1 Port szeregowy 1 UID Button/UID LED 1 Złącza wewnętrzne Front Lan LED Connector 1 for LAN3/LAN4 Złącze panelu AUX 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TR1 1 Złącze TPM 1 (17-pin, LPC), 1 (13-pin, SPI) Złącze IPMB 1 Złącze VGA 1 Brzęczyk 1 Złącze wentylatorów 3 (6-pin), 3 (4-pin) Panel frontowy 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Głośnik 1 BMC_SMB Header 1 Power Connector 1 ATX main power (24-pin), 1 ATX 12V (8-pin) Clear CMOS 1 contact pads Onboard LED Standby PWR LED 5vsb 1 Port 80 LED 1 Fan Fail LED 6 BIOS Rodzaj BIOS 32MB AMI UEFI Legal BIOS Cechy BIOS Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash Hardware Monitor Temperatura CPU/ DRAM/ MB/ Card Side/X570 temperature sensing Wentylator Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control Napięcie 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V Środowisko Temperatura Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C Specyfikacja może ulec zmianie bez wcześniejszego powiadamiania. Marka i nazwy produktów są znakami towarowymi ich właścicieli. Działanie konfiguracji innych niż wynikające ze specyfikacji nie jest gwarantowane.
