Wyrestorm Ex-35-H2 18Gbps 4K Hdr Hdbaset Extender Hdcp 2.2 Konwerter Hdmi Ethernet Kościan

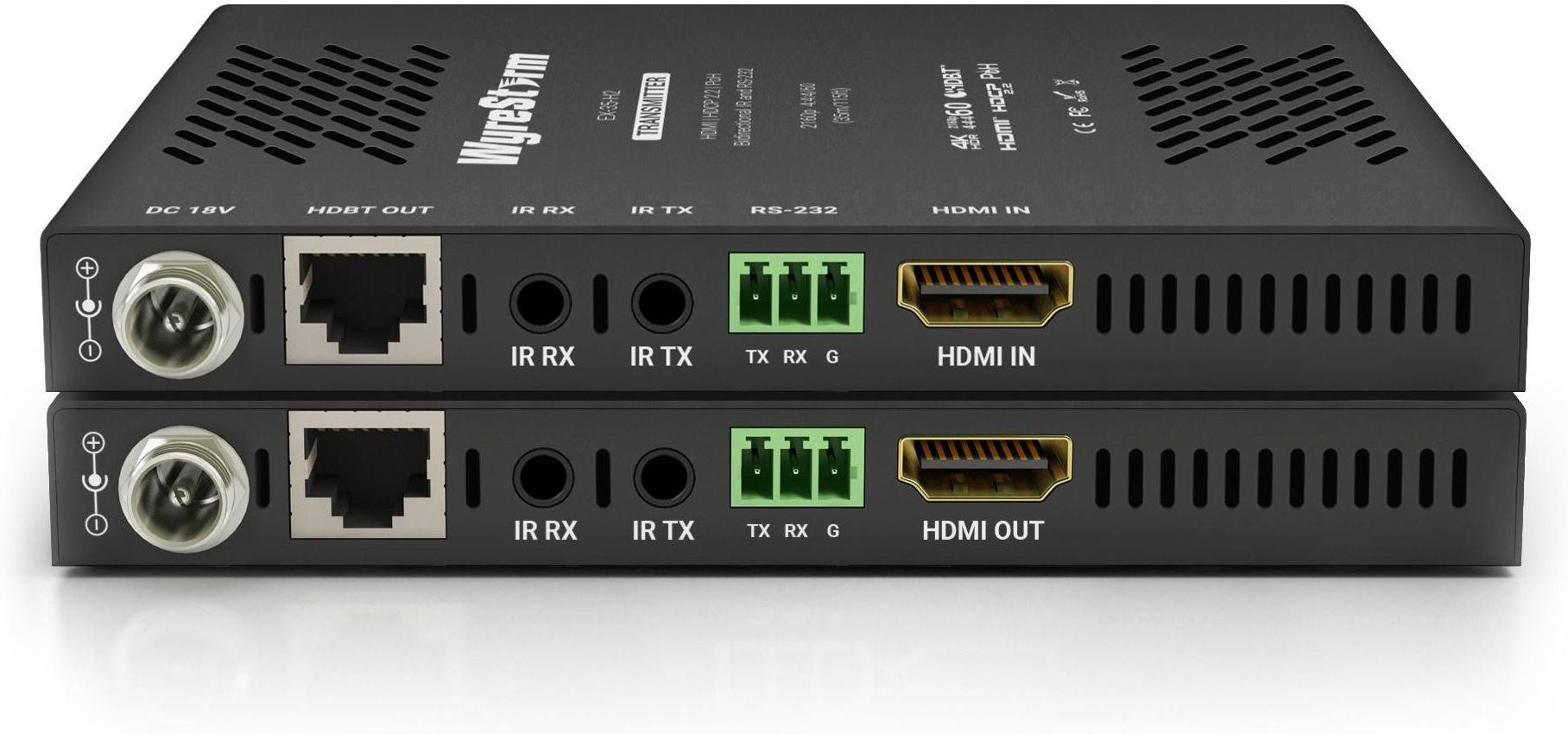

18Gbps 4K HDR HDBaseT™ Extender with HDCP 2.2 and 2-way PoH (4K: 35m/115ft | 1080p: 70m/230ft) EX-35-H2 For extension of 4K UHD and HDR transmissions over medium distances in residential or commercial applications, the EX-35-H2 features WyreStorm's dynamic compression and HDBaseT technology to deliver visually lossless, latency-free 4K/60 4:4:4 or HDR content, along with bidirectional control and 2-way PoH up to 35m/115ft or 1080p to 70m/230ft. HDMI2.0 Maxed Out Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 60Hz HDR and 4:4:4 60Hz. HDCP 2.2 COMPLIANT The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-35-H2 supports the multi-point distribution of this content over HDBaseT™. Signal Re-clocking Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices. FLEXIBLE INSTALL OPTIONS WITH 2-WAY PoH No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet. Features Dynamic visually lossless compression enables extension of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT HDBaseT Class B transmission of 4K up to 35m/115ft and 1080p up to 70m/230ft Compatible with the latest HDR standards, including HDR-10+, HLG content, with support for Dolby Vision™ up to 30Hz Supports all VESA resolutions within the HDMI 2.0 specification Advanced re-clocking chipset increases compatibility with new 4K UHD source devices Bidirectional IR and RS-232 pass-through Supports CEC communication between devices* Slimline 21mm/0.83in chassis for easier, more convenient installation behind displays 2-way PoH (Power over HDBaseT) enabling either transmitter or receiver to be remotely powered by the other unit Supports 2ch PCM and 7.1 multichannel audio up to DTS:X and Dolby Atmos HDCP 2.2 compliant Automatic EDID Management Threaded bushings allow use of both standard and locking DC power plugs Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT link between devices Automatically adjusts equalization and amplification of signal for easy installation Energy efficient universal power supply included *While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication Specifications Audio and Video Transmitter Receiver Inputs 1x HDMI 19-pin type A 1x HDBaseT™ 8-pin RJ-45 female Outputs 1x HDBaseT™ 8-pin RJ-45 female 1x HDMI 19-pin type A Output Video Encoding HDBaseT™ Class B Encoding Data Rate 9.2Gbps End to End Latency Formats 10μs (micro seconds) Audio Formats 2ch Analog/PCM | Multichannel: LPCM Up to DTS-X and Dolby Atmos Video Resolutions (Max) Video Resolutions 1920x1080p @60Hz 12bit 1920x1080p @60Hz 16bit 3840x2160p @24Hz 10bit 4:2:0 HDR 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:4:4 HDMI v1/2 15m/49ft 7m/23ft 3m/10ft 7m/23ft 3m/10ft 7m/23ft 7m/23ft Cat6 v1 70m/230ft 70m/230ft 35m/115ft 35m/115ft NA 35m/115ft NA v2 70m/230ft 70m/230ft 35m/115ft 35m/115ft 35m/115ft 35m/115ft 35m/115ft Cat6a/7 v1 70m/230ft 70m/230ft 35m/115ft 35m/115ft NA 35m/115ft NA v2 70m/230ft 70m/230ft 35m/115ft 35m/115ft 35m/115ft 35m/115ft 35m/115ft Supported Standards DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT 2100 Maximum Pixel Clock HDMI: 600MHz | HDBaseT: 297MHz Communication and Control HDMI HDMI 2.0 | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included) HDBaseT™ HDMI 2.0 | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR and RS-232 IR 1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT™ 1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™ RS-232 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT™ Power Power Supply 18V DC 1A Max Power Consumption 8.88W PoH 48V 15.4W Environmental Operating Temperature 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing Maximum BTU 30.30 BTU/hr Dimensions & Weight Version 1 Version 2 Rack Units <1u> <1u> Height 17mm/0.67in 15.2mm/0.6in Width 140mm/5.52in 136.4mm/5.38in Depth 90.2mm/3.56in 74.2mm/2.93in Weight 0.36kg/0.79lbs 0.22kg/0.48lbs Regulatory Safety and Emission CE | FCC | RoHS | RCM
