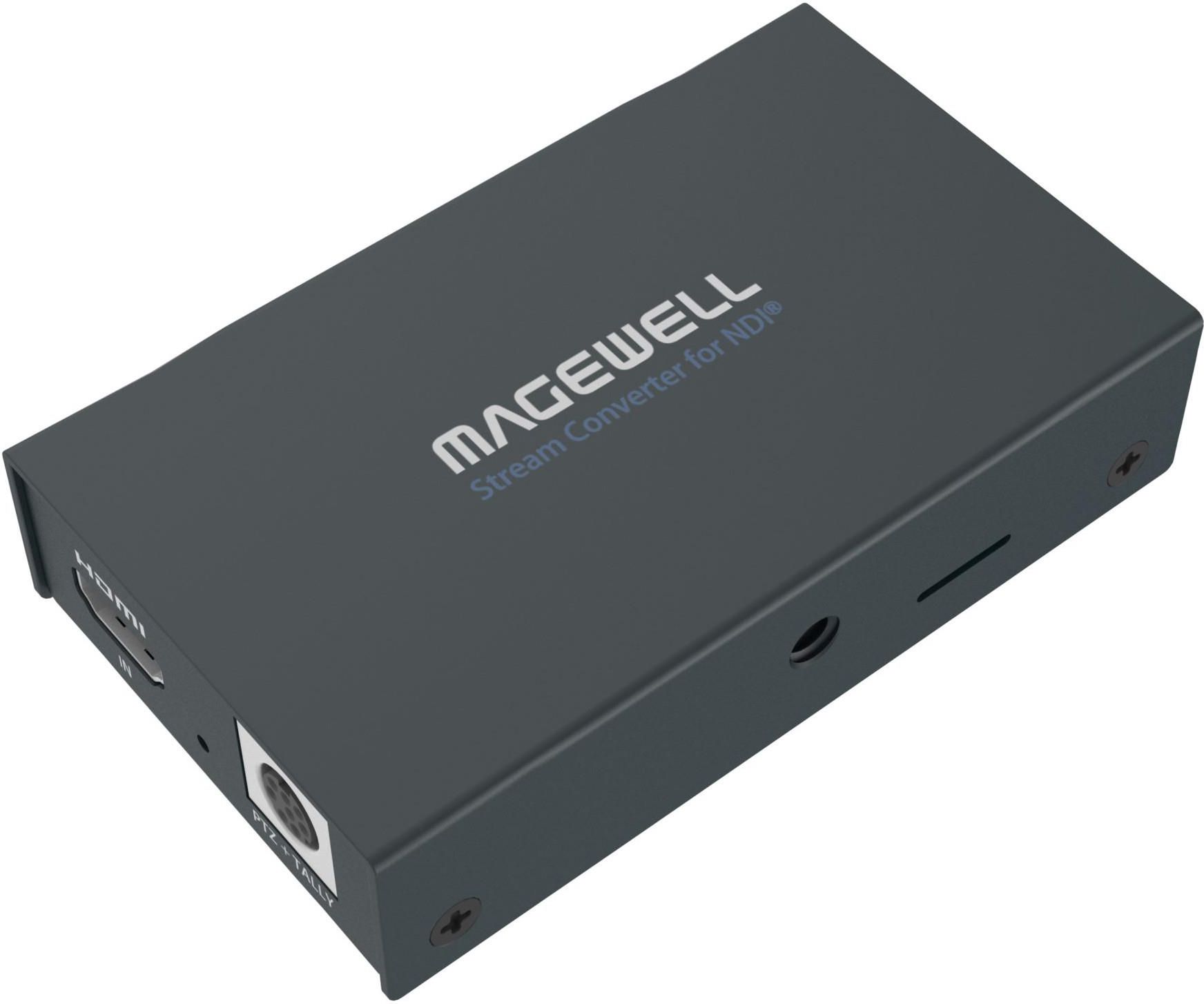

Magewell Pro Convert HDMI TX (64052eu) Kościan

Pro Convert HDMI TX One-channel HD Signal Converter Part number: Please choose the device which meets your local power supply standard. 64050 US; 64052 EU; 64053 UK; 64054 AU; 64055 KR; 64056 JP Convert one channel of HDMI signal with embedded audio to NDI® stream Supported Web Browser (tested) Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above Supported Software (tested) OBS XSplit vMix VidBlasterX Wirecast streamstar SW mimoLive Any other NewTek NDI-enabled encoding or streaming software Input Interface HDMI DVI-D 1.0 HDMI 1.4 Storage Interface SD Card (functions to be developed) PTZ + TALLY Control Mini-DIN–8 jack Mounting Hole ¼–20 mounting hole Network Interface 10/100/1000Mbps Ethernet IEEE 802.3af PoE USB Interface USB2.0 Type B 5V/2.1A power supply USB RNDIS/ECM Input feature Support input video resolutions at up to 2048x1200 HDMI Specific Features 165MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio InfoFrames Full colorimetry support Support up to 2048x1200 4:4:4/4:2:2 60fps input signals Support 8 input and 2 output IEC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. NDI® Output Format Support for 4:2:2 8-bit output Support for up to 2048x1200 60fps Support for NDI 3.x Video Processing Features Video processing pipelines with 160 Mpixels/s Video brightness, contrast, saturation, hue adjustment Video de-interlacing Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of output aspect ratio Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video mirror flip NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’. Support for setting board-index, from 0 to F, through on-board rotary switch Firmware Upgrade Support for manual update using Web UI LED Indicator Status LEDs indicate: Power supply indicator: on/off Input signal indicator: locked/unlocked Form Factor 100.9smm (L) x 60.2mm (W) x 23.3mm (H) Accessories USB 2.0 A to B Cable 5V/2.1A power adaptor Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY) Tally lights L-bracket LED matrix panel (optional) Power Consumption 5V max current: ~1.5A Max power consumption: ~6W Working Environment Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
