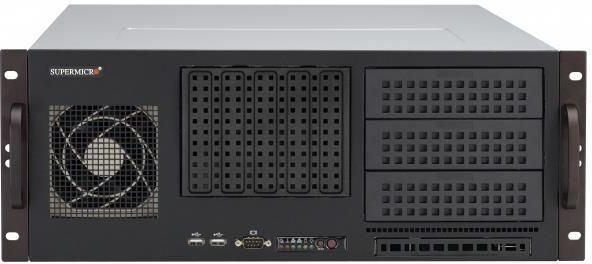

Supermicro CSE-842I-500B Jordanów

Product SKUs CSE-842i-500B SuperChassis 842i-500B (Black) Form Factor Industrial Short-Depth 4U Rackmount supports E-ATX, ATX, Micro ATX motherboards; max. motherboard size 12" x 13" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 7.0" (178mm) Width 17.2" (437mm) …

od 1 403,83 Najbliżej: 47 km

Liczba ofert: 1

Oferta sklepu

Opis

Product SKUs CSE-842i-500B SuperChassis 842i-500B (Black) Form Factor Industrial Short-Depth 4U Rackmount supports E-ATX, ATX, Micro ATX motherboards; max. motherboard size 12" x 13" Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 7.0" (178mm) Width 17.2" (437mm) Depth 20.5" (521mm) Packaging 26.4" (W) x 13.8" (H) x 31.5" (D) 670mm (W) x 350mm (H) x 800mm (D) Gross Weight 25 lbs (11.3kg) Available Colors Black Expansion Slots 7x Tool-less Full-height, Full-length PCI Expansion Slots Drive Bays Internal HDD Bays 5x 3.5" internal HDD Bays SAS or enterprise SATA HDD only recommended Peripheral Bay(s) 3x 5.25" Peripheral Drive Bays 1x Slim DVD-ROM (optional) Drive Bay Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports 2x USB 2.0 Ports Motherboard (for CSE-842i-500B ) H8SCM H8SCM-F H8SGL H8SGL-F H8SML-7 H8SML-7F H8SML-i H8SML-iF X10SL7-F X10SLA-F X10SLH-F X10SLL+-F X10SLL-F X10SLL-S X10SLL-SF X10SLM+-F X10SLM+-LN4F X10SLM-F X10SLX-F X10SRH-CF X10SRi-F X10SRL-F X11SSA-F X9DRL-3F X9DRL-iF X9SCI-LN4 X9SCL X9SCL+-F X9SCL-F X9SCM X9SCM-F X9SCM-iiF X9SRE X9SRE-3F X9SRE-F X9SRH-7F X9SRH-7TF X9SRi X9SRi-3F X9SRi-F X9SRL-F System Cooling Fans (Hot-plug) 1x Front Intake 9cm PWM cooling fan 2x Rear 8cm PWM cooling fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 500W AC power supply w/ PFC AC Voltage 100 - 240V, 50-60Hz, 7-3.5 Amp +5V 20 Amp +5V standby 3 Amp +12V1 17 Amp +12V2 17 Amp +12V3 17 Amp +12V4 18 Amp -12V 0.5 Amp +3.3V 15 Amp Certification Bronze Certified [ Test Report ]Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant

Specyfikacja

Podstawe informacje

Kod producenta
  • CSE842I500B
Producent
  • SuperMicro
