Luxul XMS-2624P Grodzisk Wielkopolski

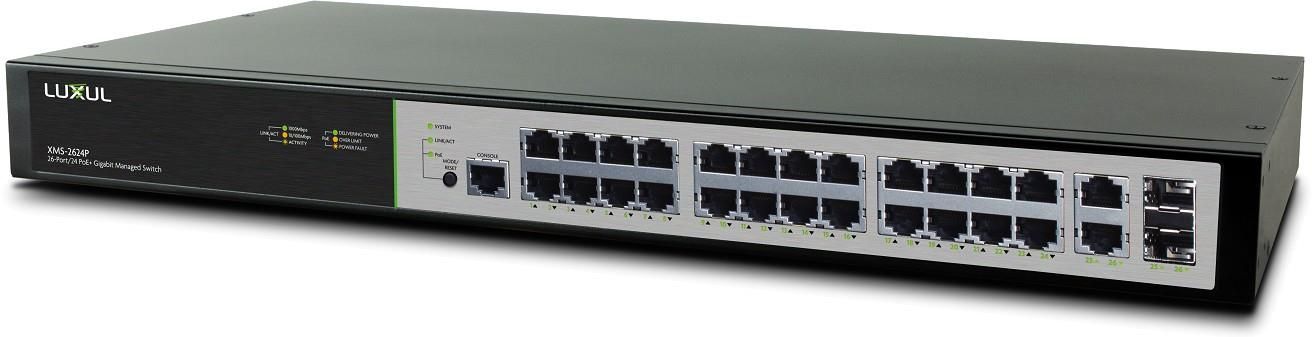

The Luxul 26 Port/24 PoE+ Gigabit Managed Switch (XMS-2624P) is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and APs. The switch includes 24 PoE+ ports, with a total power budget of 370 Watts. It also features 2 Gigabit RJ-45/SFP Combo ports for easy network expansion. The XMS-2624P helps optimize your network with support for Layer 3 static routing between VLANs while also featuring simple-to-use management, VLAN and security capabilities to ensure optimal benefit from your home or office network. USE THE XMS-2624P TO: Connect up to 24 IP Cameras or Other PoE-Enabled Devices (Max Output 370 Watts) Add 802.3af/at Gigabit PoE+ Capability to Your Network Optimize Your Network with VLAN, QoS and PoE Management Enhance Network Performance with Layer 3 Static Routing Simply Plug and Play FEATURES: PoE Self-Healing with auto-recovery and power scheduling 24 Gigabit RJ45 802.3af/at PoE+ Ports 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports) 370 Watt Power Budget 52Gbps Switching Capacity Layer 3 Static Routing 802.1Q VLAN (with Trunking) and QoS Support Plug-and-Play Installation with Intuitive Management Simple Power Management of PoE-Enabled Devices Variable Speed Fans for Quiet Operation Standard 19” Rack-Mount Three Year Limited Warranty The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV) Protocols and Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af/at ,IEEE 802.3x ,IEEE 802.1P ,IEEE 802.1Q ,IEEE 802.1X ,IEEE 802.1D STP, 802.1w Interface Options RJ-45: 10 Base-T: Cat.5 UTP /STP 100 Base-TX: Cat.5 UTP /STP 1000Base-T: Cat.5, Cat.5e or Cat.6 UTP/STP Gigabit fiber uplinks on SFP ports Cable Recognition for Straight-through or Crossover Cables Surge Protection The RJ45 port surge protection is tested to: EN61000-4-5 (for RJ45 Port, Surge 6KV) VLAN 802.1Q max 4094 VIDs & VLAN Trunking Supports 1 Management VLAN Quality of Service (QoS) 4 Queues per port Queue handling: Strict, Weighted Round Robin (WRR), Strict+WRR, and Equal CoS based on DCSP, 802.1P and Port Based Priority Queues Port based bandwidth control Network Data Transfer Rate Ethernet: 10Mbps (Half-duplex) Ethernet: 20Mbps (Full-duplex) Fast Ethernet: 100Mbps (Half-duplex) Fast Ethernet: 200Mbps (Full-duplex) Gigabit Ethernet: 1000Mbps (Half-duplex) Gigabit Ethernet: 2000Mbps (Full-duplex) LED Per Unit: Power, System Per Port: Link/Activity Power Budget 370W Max Power Consumption 470W Power Supply Internal Switched Power, AC 100-240V, 50-60Hz input Operating Temperature 32°F to 104°F (0°C to 40°C) Operating Humidity 10% to 90% (Non-condensing) Dimensions L xWxH in. (mm) 17.3”(439.5) x 8.25”(209.55) x 1.75”(44.5) Weight lbs (kg) 11.9 (4.1) Certifications FCC, CE, RoHS
