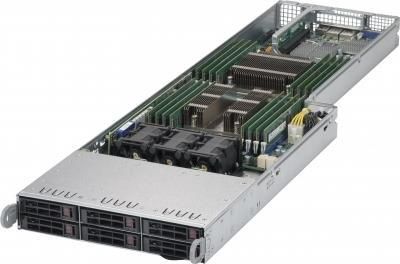

Supermicro SYS-F618R2-RC1+ Gliwice

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs SYS-F618R2-RC1+ SuperServer F618R2-RC1+ (Black) Motherboard Super X10DRFR-N Processor/Cache CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 22 Cores† / Up to 55MB† Cache System Bus QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory Memory Capacity 16x 288-pin DDR4 DIMM slots Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM Memory Type 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 chipset SAS LSI 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60 SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers Intel® i350-AM2 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) Graphics ASPEED AST2400 BMC Input / Output (per node) SAS 6 SAS3 (12Gbps) ports NVMe 2 Internal NVMe ports (PCI-E 3.0 x4) Note: NVMe support requires 2 CPUs installed LAN 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 3.0 ports VGA 1 VGA port Management Software Intel® Node Manager SuperDoctor® 5 Watch Dog NMI IPMI 2.0 SUM and SSM Power Configurations ACPI / APM Power Management Power-on mode for AC power recovery Chassis Form Factor 4U Rackmount Model CSE-F418BC-R2K04B Dimensions and Weight Width 17.63" (448mm) Height 6.96" (177mm) Depth 29" (737mm) Package 28.3" (W) x 15.0" (H) x 42.4" (D) Weight Net Weight: 150 lbs (68.04 kg) Gross Weight: 200 lbs (90.71 kg) Available Colors Black Front Panel Buttons Power On/Off button UID button LEDs Power status LED Hard drive activity LED 2 Network activity LEDs Information LED (UID, Fan failure, Overheat) Expansion Slots (per node) PCI-Express 1 PCI-E 3.0 x16 Low-profile 1 PCI-E 3.0 x8 (Micro LP) MicroLP Adapter Matrix (Networking options) Drive Bays (per node) Hot-swap 6x 2.5" Hot-swap SAS/SATA or 4x 2.5" Hot-swap SAS/SATA + 2x SAS/SATA/NVMe hybrid Backplane 1x SAS/SATA backplane System Cooling (per node) Fans 3x 4cm 14k RPM middle fans Power Supply (76mm Width) 2000W Redundant Power Supplies with PMBus Total Output Power 1000W/2000W Dimension (W x H x L) 76 x 40.4 x 336 mm Input 100-127 Vac / 12-9.5 A / 50-60 Hz 200-220 Vac / 10-9.5 A / 50-60 Hz 220-230 Vac / 10-9.8 A / 50-60 Hz 230-240 Vac / 10-9.8 A / 50-60 Hz 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only) +12V Max: 83.3A & Min: 0A (100-127 Vac) Max: 150A & Min: 0A (200-220 Vac) Max: 165A & Min: 0A (220-230 Vac) Max: 166.7A & Min: 0A (230-240 Vac) Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only) +5Vsb Max: 1A / Min: 0A Output Type 27 Pairs Gold Finger Connector Certification UL/cUL/CB/BSMI/CE/CCC Titanium Level [ Test Report ] System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) UWAGA !!! Oferowany produkt to platforma serwerowa służąca do budowy swojej własnej konfiguracji serwera ( nie zawiera CPU, RAM czy HDD ). Jeżeli potrzebujesz kupić gotowy serwer wraz z CPU, RAM, HDD/SDD oraz innymi opcjami koniecznie wyślij do nas zapytanie. Posiadamy najlepsze ceny i dostępność na pełne konfiguracje. Zapewniamy pełne wsparcie techniczne do zakupionych u nas serwerów.
