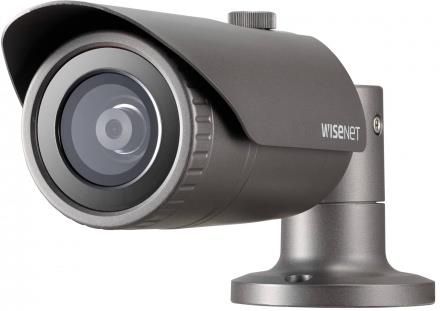

Hanwha Techwin Kamera Ip 5Mp Qno-8010R 2.8Mm Gdynia

QNO-8010R VIDEO Imaging Device 1/2.8 5MP CMOS Effective Pixels 2592(H) x 1944(V) Min. Illumination Color : 0.15Lux (F2.0, 1/30sec) BW (IR LED on) Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation LENS Focal Length (Zoom Ratio) 2.8mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H : 104.7°/ V : 76.5°/ D : 136.0 Focus Control Fixed PAN / TILT / ROTATE Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚ OPERATIONAL IR Viewable Length 20m (65.62ft) Camera Title Displayed up to 85 characters Day Night Auto (ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view (90˚/270˚) Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm events File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output NETWORK Ethernet RJ-45 (10/100BASE-T) Video Compression H.265/H.264 : Main/High, MJPEG Resolution 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 Max. Framerate H.265/H.264 : Max. 30fps/25fps (60Hz/50Hz) / MJPEG : Max. 15fps/12fps (60Hz/50Hz) Smart Codec WiseStream II Video Quality Adjustment H.264/H.265 : Target bitrate level control / MJPEG : Quality level control Bitrate Control H.264/H.265 : CBR or VBR / MJPEG : VBR Streaming Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles) Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Security HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14 Recommended Browser Google Chrome Supported Browser MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only) Memory 512MB RAM, 256MB Flash ENVIRONMENTAL Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up condition Start up should be done at above -20°C Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 ELECTRICAL Input Voltage PoE (IEEE802.3af, Class3) Power Consumption PoE : Max 7.5W, typical 6.1W MECHANICAL Color / Material Dark grey / Aluminum Product dimensions / weight Ø70.0 x 246.0mm (Ø2.76 x 9.69), 680g (1.499 lb)
