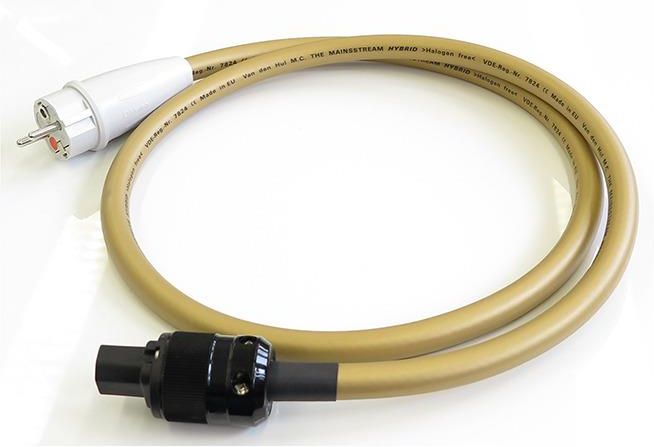

Van den Hul The Mainsstream (2m) Czempiń

Podstawowe cechy: Długość: 2m Specyfikacja techniczna: Cable Type: Screened 7 core Conductor Material: HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s) Design Purpose/ Application Area(s): Low noise AC power distribution cable for high-end audio, video and professional equipment use. Eff. Conductor Ø/Eq. AWG No./Strands: Cores: 0.56 mm² / AWG 19.6 / 7 Ground: 1.69 mm² / ~AWG 15 / 84 Screen: 7.92 mm² / ~AWG 8 / 252 External Diameter / -Dimensions: 15.0 mm Resistance 20 °C / 68 °F: Cores: 3.0 Ohm/100 m. Three cores combined = Lead or Neutral: 1.0 Ohm/100 m. Ground: 1.0 Ohm/100 m. Screen: 0.22 Ohm/100 m. Insulation / Dielectric Strength / Test Voltage: Cores: HULLIFLEX ® 4; Jacket: HULLIFLEX ® 4 / 750 Vrms min. / 5 kV Connector Types Suitable: Mains side: Country specific grounded mains plugs with 15 mm. cable inlet. Equipment side: Our large IEC320/C15 type 15 amp IEC power connector or our european mainland outlet type, 7 socket distribution board; All mounted on ordered lengths. Jacket Colours Available: Gold tone Remarks: Approval / Certification: Tested and certified according to DIN VDE 0282-10 (VDE 0282 Part 10):2000-07; HD 22.10 S1:1994 + A1:1999 Note: For electric safety reasons this cable is not sold without connectors. We advise consumers against mounting connectors to this cable themselves; Mounting connectors to this cable needs expertise. Our The MAINSSTREAM BS HYBRID is a smaller diameter (12.5 mm) version of this cable. Our The MAINSSERVER HYBRID is a lower power (6 Ampere) version of this cable.
