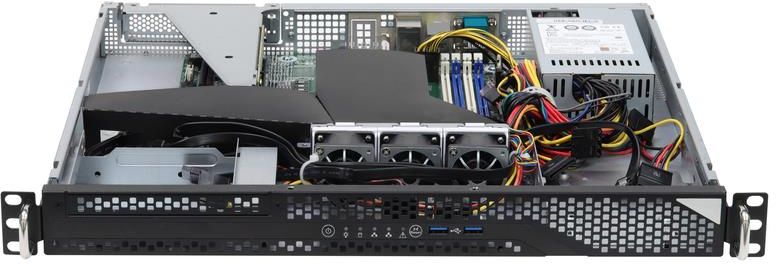

Asrockrack Asrock 1U2Lw-X570, Rack 1U, Up, Amd Ryzen 5000, Int. Drive Bays, 2Xgbe, Fixed Psu, Ipmi (1U2LWX570) Bytom

1U2LW-X570 1U Rackmount with 315W PSU supports AMD Ryzen 5000 Series Desktop Processors 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each 2 fixed 3.5" drive bays 2 M.2 (PCIe4.0 x4) 1 FHHL PCIe4.0 x16 2 RJ45 (1GbE) by Intel® i210 Remote management (IPMI) Specyfikacja System Rozmiar/format 1U Rackmount …

od 4 640,31 Najbliżej: 15 km

Liczba ofert: 1

Oferta sklepu

Opis

1U2LW-X570 1U Rackmount with 315W PSU supports AMD Ryzen 5000 Series Desktop Processors 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each 2 fixed 3.5" drive bays 2 M.2 (PCIe4.0 x4) 1 FHHL PCIe4.0 x16 2 RJ45 (1GbE) by Intel® i210 Remote management (IPMI) Specyfikacja System Rozmiar/format 1U Rackmount Wymiary 394 x 482.6 x 44.4 mm (15.5" x 19" x 1.7") Obsługiwane płyty X570D4U Front Panel Buttons Power Switch, System Reset LEDs Power Status, HDD, LAN Activity LEDs I/O Ports 2 Type-A (USB 3.2 Gen1) Zewn™trzna zatoka / Storage Frontowe zatoki 1 Slim ODD Internal Side 2 fixed 3.5" SATA drive bays or 1 fixed 3.5" and 1 fixed 2.5" SATA drive bays 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics Zasilacz Rodzaj Single PSU Moc wyjściowa 315W Efektywnoś‡ 80-PLUS Gold AC Input 100-240V, 50-60Hz Chłodzenie Wentylator 3 PWM Easy-swap 40x28 mm fans Procesor CPU Supports: AMD Ryzen™ 5000 and 3000 Series Desktop Processors AMD Ryzen™ 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors Socket AM4 PGA 1331 Chipset AMD X570 Pami™‡ operacyjna Pojemnoś‡ 4 DIMM slots (2DPC) Rodzaj Supports DDR4 288-pin ECC*/non-ECC UDIMM *For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. DIMM Size Per DIMM up to 32GB Max. DIMM Frequency up to 3200 MHz* * AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz Napi™cie 1.2V Sloty rozszerzeń PCIe x 16 Supports 1 FHHL PCIe4.0 x16* via RB1UX16_G4 *Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics *Supports PCIe3.0 x16 when using AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics Zarz dzanie Kontroler BMC ASPEED AST2500 IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN Grafika Kontroler ASPEED AST2500: 1 DB15 (VGA) AMD Ryzen Desktop Processors with Radeon Graphics: 1 HDMI VRAM DDR4 16MB Tylny panel I/O Port VGA 1 D-Sub Port USB 3.2 2 Type-A (USB3.2 Gen2) Port Lan 2 RJ45(1GbE) by Intel® i210 1 dedicated IPMI Port szeregowy 1 UID Button/UID LED 1 UID w/ LED BIOS Rodzaj BIOS 32MB AMI UEFI Legal BIOS Cechy BIOS Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash Środowisko Temperatura Operation temperature: 10°C ~ 35°C* / Non operation temperature: -40°C ~ 70°C Humidity - Non operation humidity: 20% ~ 90% ( Non condensing) Specyfikacja moĹźe ulec zmianie bez wcześniejszego powiadamiania. Marka i nazwy produktów s znakami towarowymi ich właścicieli. Działanie konfiguracji innych niĹź wynikaj ce ze specyfikacji nie jest gwarantowane.

Specyfikacja

Podstawowe informacje

Marka
  • ASRock
Kod producenta
  • 1U2LWX570
