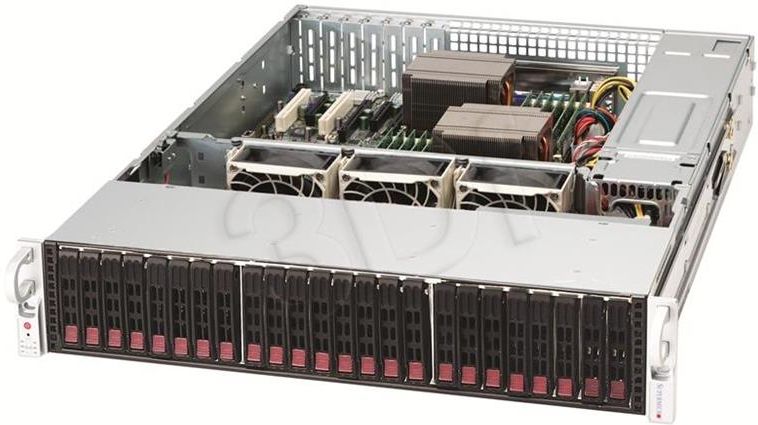

SUPERMICRO CSE-216E16-R1200LPB Bochnia

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu: Product SKUs CSE-216E16-R1200LPB SuperChassis 216E16-R1200LPB (Black) Form Factor 2U chassis support for motherboard size - 13.68" x 13", E-ATX and ATX Processor Support Supports dual, single Intel® / AMD processors Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 24.8" (630mm) Packaging 26.5" (W) x 10.5" (H) x 38" (L) Weight Net Weight: 35 lbs (15.9kg) Gross Weight: 57 lbs (25.9kg) Available Color Black Expansion Slots • 7x low-profile expansion slots Drive Bays Hot-swap 24x 2.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended Backplane SAS2 Expander Backplane, features: • Scalability through cascading • 6Gb SAS2/SATA3 HDD support • Inband SES-2 Enclosure Management • Single input/output SFF 8087 connectors Front Panel Buttons • Power On/Off button • System Reset button LEDs • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED Motherboard (for CSE-216E16-R1200LPB ) H8DG6 H8DG6-F H8DGi H8DGi-F X8DA6 X8DAE X8DTH-i X8DTH-iF X8DTL-6 System Cooling Fans 3x 80mm 7000 RPM hot-swap PWM fans System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply Redundant 1200W high-efficiency power supply with PMBus AC Input 1000W Output @ 100-140V, 11.5-8A, 50-60Hz 1200W Output @ 180-240V, 8-5.5A, 50-60Hz DC Output 1000W: +12V/83A; +5Vsb/4A 1200W: +12V/100A; +5Vsb/4A DC Output with PDB +5V: 50 Amp +3.3V: 30 Amp -12V: 0.6 Amp Certification Gold Certified [ Test Report ]Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification
